2007 Wrangler JK Factory Service Manual Not in the contents tree

REMOVAL

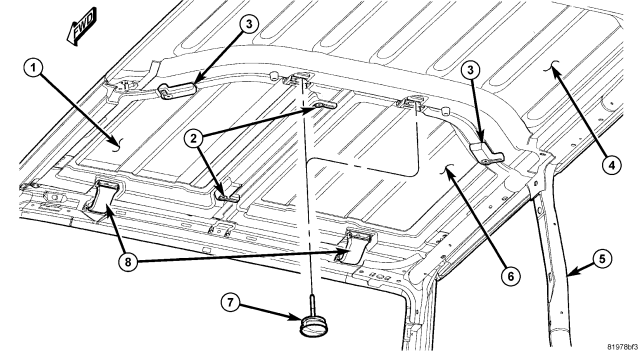

1. From inside the vehicle, release the center clamps (2).
2. Release the rear clamps (3).
3. Remove the rear thumb bolts (6).
4. Release the front top clamps (7).





5. Remove the modular tops (1) and (2).
6. On four door models, remove the two front bolts (3).
7. Remove the six side bolts (5) and remove the main hard top (4).
