STANDARD PROCEDURE - MEASURING TIMING CHAIN WEAR

NOTE: This procedure must be performed with the timing chain cover removed (Refer to 9 - ENGINE/VALVE TIMING/TIMING CHAIN COVER - REMOVAL).

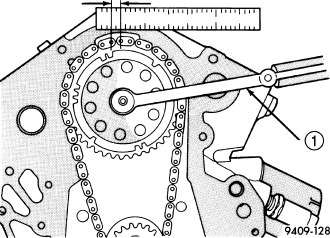

1. Position a scale next to timing chain so that any movement of chain may be measured .
2. Position a torque wrench and socket on the camshaft sprocket attaching bolt. Apply force in the direction of crankshaft rotation to take up slack to the following torque:

41 N·m (30 ft. lb.) with cylinder heads installed
20 N·m (15 ft. lb.) with cylinder heads removed

NOTE: With torque applied to the camshaft sprocket bolt, crankshaft should not be permitted to move. It may be necessary to block crankshaft to prevent rotation.

3. Holding a measuring scale along edge of chain links .
4. Apply force in the reverse direction to the following torque:

41 N·m (30 ft. lb.) with cylinder heads installed
20 N·m (15 ft. lb.) with cylinder heads removed

5. Measure amount of sprocket/chain movement.
6. Install a new timing chain and sprockets if movement exceeds 3.175 mm (1/8 in.).
