2012 Jeep Wrangler JK Factory Service Manual 08 - Electrical

CABLE, Antenna, Satellite

REMOVAL

REMOVAL

  1. Disconnect the battery negative cable.

    2.
  2. Remove the top.

    3.
  3. Remove the B-pillars. (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Removal) .

    4.
  4. Remove the cowl trim. (Refer to 23 - Body/Interior/PANEL, Cowl Trim - Removal) .

    5.
  5. Remove the glove box.

    6.
  6. Remove the instrument panel speaker. (Refer to 08 - Electrical/8A - Audio and Video/SPEAKER - Removal) .

    7.

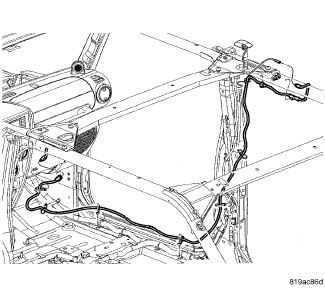

  7. Remove the satellite antenna cable.

    8.

INSTALLATION

INSTALLATION

  1. Install the satellite antenna cable.

    2.
  2. Install the instrument panel speaker. (Refer to 08 - Electrical/8A - Audio and Video/SPEAKER - Installation) .

    3.
  3. Install the glove box.

    4.
  4. Install the cowl trim.

    5.
  5. Install the lower B-pillar trim. (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Installation) .

    6.
  6. Install the top.

    7.
  7. Connect the battery negative cable.

    8.
