2012 Jeep Wrangler JK Factory Service Manual 08 - Electrical

ANTENNA, Navigation

REMOVAL

REMOVAL

  1. Disconnect the battery negative cable.

    2.
  2. Remove the center bezel.

    3.
  3. Remove the radio. (Refer to 08 - Electrical/8A - Audio and Video/RADIO - Removal) .

    4.

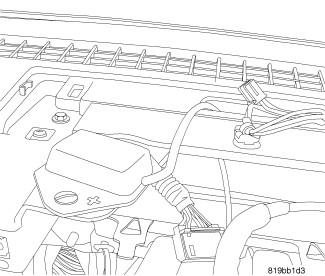

  4. Remove the push pins securing the GPS antenna.

    5.
  5. Remove the GPS antenna.

    6.

INSTALLATION

INSTALLATION

  1. Install the GPS antenna.

    2.
  2. Secure the GPS antenna using the push pins.

    3.
  3. Install the radio. (Refer to 08 - Electrical/8A - Audio and Video/RADIO - Installation) .

    4.
  4. Install the center bezel.

    5.
  5. Connect the battery negative cable.

    6.
