2012 Jeep Wrangler JK Factory Service Manual 08 - Electrical

MODULE, Power Inverter

OPERATION

OPERATION

The AC power outlet receives 12 volts from the Totally Integrated Power Module (TIPM) and passes it as an enable signal to the inverter module. The inverter module also receives 12 volts via the TIPM and inverts this to a 115 volt AC output. The enable signal received from the power outlet enables the inverter to convert the received voltage and pass it to the power outlet to power external devices.

REMOVAL

REMOVAL

  1. Disconnect the negative battery cable.

    2.

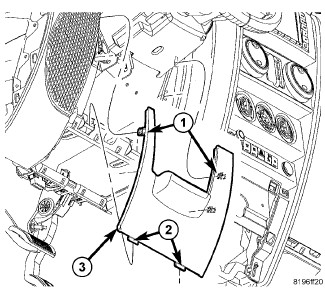

  2. Remove the steering column opening cover (Refer to 23 - Body/Instrument Panel/COVER, Steering Column Opening - Removal) .

    3.

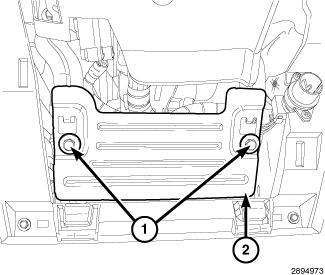

  3. Remove the retainers (1) and remove the reinforcement plate (2).

    4.

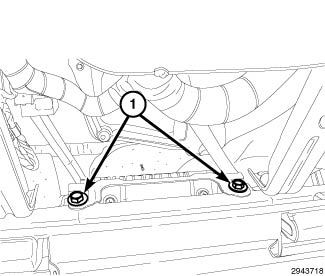

  4. Remove the upper power inverter retainers (1).

    5.

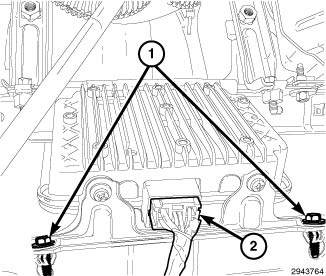

  5. Remove the lower power inverter retainers (1) and disconnect the wiring connector (2) from the power inverter module and remove from the vehicle.

    6.

INSTALLATION

INSTALLATION

  1. Install the power inverter module, install the lower power inverter retainers (1) and connect the wiring connector (2).

    2.
  2. Install the upper power inverter retainers (1).

    3.
  3. Install the reinforcement plate and retainers.

    4.
  4. Install the steering column opening cover (Refer to 23 - Body/Instrument Panel/COVER, Steering Column Opening - Installation) .

    5.
  5. Connect the negative battery cable.

    6.
