HINGE
REMOVAL
REMOVAL
Special Tools: Click to display a list of tools used in this procedure
 |
| NOTE: |
It is not necessary to remove the tailgate to replace the hinges if they are replaced one at a time. |
| NOTE: |
A suitable body sealant should be used when removing or moving the hinges. |

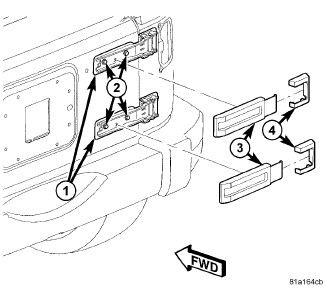

- Using a trim stick C-4755 or equivalent, separate the hinge covers (3 and 4) from the hinges.
- Using a grease pencil or equivalent, mark the position of the hinge (1) on the tailgate.
-
Remove the bolts (2) attaching the hinge to the tailgate.
-

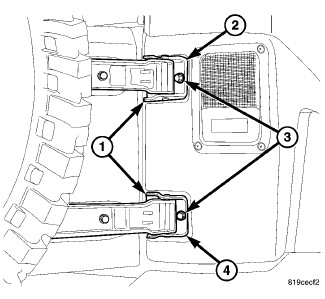

Remove the bolts (1 and 2) attaching the hinge to the body.
INSTALLATION
INSTALLATION
|
| NOTE: |
A suitable body sealant should be used when removing or moving the hinges. |
-
Align the hinges to the door using the reference marks made during the removal procedure and install the body bolts (1 and 2).
-
Install the bolts (2) and tighten to 20 N·m (15 ft. lbs.).
- Tighten the body bolts to 26 N·m (19 ft. lbs.).
- Adjust the tail gate if necessary, (Refer to 23 - Body/Body Structure/Gap and Flush - Specifications) .
