LATCH

• ADJUSTMENTS
• REMOVAL
• INSTALLATION

ADJUSTMENTS

ADJUSTMENTS

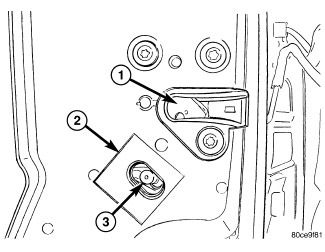

1. Locate access hole and remove the mylar tape (2) covering it.


2. Insert a 5/32” hex-wrench through hole and into adjustment screw (3). Loosen screw.


3. Operate outside handle several times to release any restriction because of mis-alignment.


4. Tighten adjustment screw to 3 N·m (30 in. lbs.).


5. Test handle for proper operation.




REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

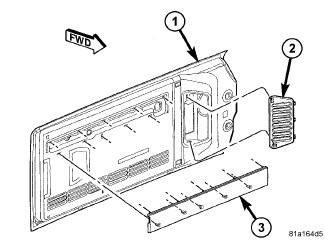

1. Using a trim stick C-4755 or equivalent, remove the inner latch trim (2).

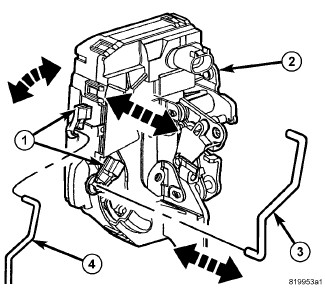

2. Release the rod clips (1) and disconnect the latch rods (3 and 4).

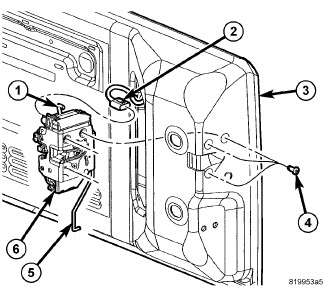

3. Remove the screws (4) and remove the latch (6).


4. Disconnect the electrical connector (2).




INSTALLATION

INSTALLATION

1. Connect the electrical connector (2) and install the latch into the tail gate (3).


2. Install the screws (4) and tighten to 8 N·m (71 in. lbs.).




3. Connect the latch rods (3 and 4) and secure the clips (1) fully.




4. Position the latch trim (2) onto the tailgate opening and seat fully.


5. Adjust the latch if necessary, (Refer to 23 - Body/Decklid/Hatch/Liftgate/Tailgate/LATCH - Adjustments) .
