BALL JOINT, Suspension, Upper
DIAGNOSIS AND TESTING - UPPER BALL JOINT
DIAGNOSIS AND TESTING - UPPER BALL JOINT
 |
To properly diagnose the upper ball joint readings from the dial indicator are necessary.
- Raise and support the vehicle.

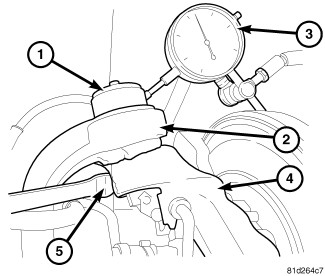

- Mount a dial indicator (3) to the rotor or knuckle with the indicator/plunger resting on the ball joint (1).
- Set the dial indicator (3) to zero.
- Insert a prybar (5) between the knuckle (4) and axle tube (2).
-
Record the radial upper ball joint movement. If this reading is above 1.5 mm (0.060 in) then replacement of the upper ball joint is necessary (Refer to 02 - Front Suspension/Front/BALL JOINT, Suspension - Removal)
.
REMOVAL
REMOVAL
Special Tools: Click to display a list of tools used in this procedure
- Remove the steering knuckle (Refer to 02 - Front Suspension/Front/KNUCKLE, Steering - Removal) .
-
Remove the axle shaft from the axle (Refer to 03 - Differential and Driveline/Front Axle - 216FBI/SHAFT, Axle - Removal)
.4X4 only.
-

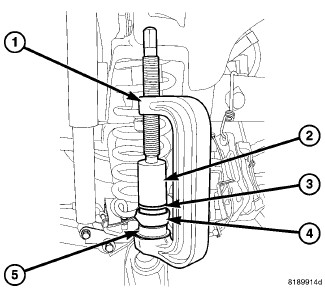

Position special tool 6761 (RECEIVER) (2) and 6289-3 (DRIVER) (4) with C-4212F (PRESS) (1) as shown to remove upper ball joint.
INSTALLATION
INSTALLATION
Special Tools: Click to display a list of tools used in this procedure
 |
-

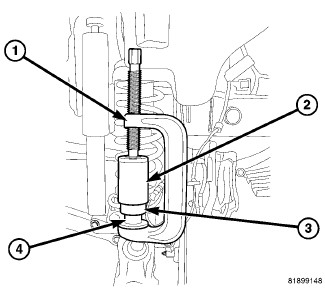

Position special tool 6752 (DRIVER) (2) and 6289-6 (RECEIVER) (5) with C-4212F (PRESS) (1) as shown to install upper ball stud (3) .
- Install the axle shaft into the axle (Refer to 03 - Differential and Driveline/Front Axle - 216FBI/SHAFT, Axle - Installation) 4X4 only.
- Install the steering knuckle (Refer to 02 - Front Suspension/Front/KNUCKLE, Steering - Installation) .
