2012 Jeep Wrangler JK Factory Service Manual 23 - Body

BAR, Sport

DESCRIPTION

DESCRIPTION

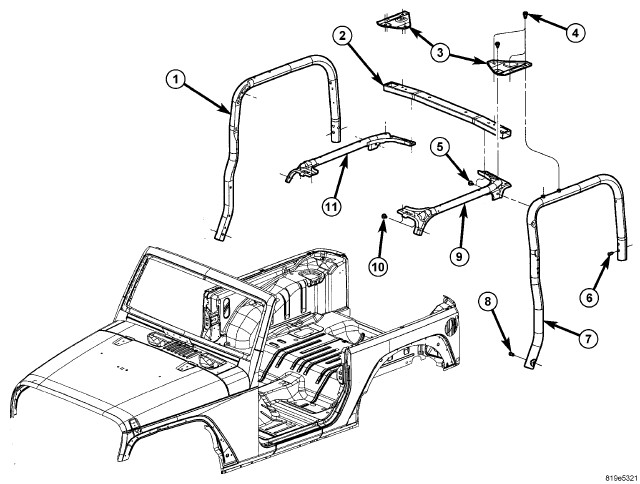

2 DOOR EXPLODED VIEW

1 - RIGHT SIDE SPORT BAR

2 - CROSS BAR

3 - UPPER CROSS BAR BRACKETS

4 - CROSS BAR BRACKET BOLTS 19 N·m (14 ft. lbs.)

5 - SIDE BAR TO SPORT BAR BOLTS 19 N·m (14 ft. lbs.)

6 - REAR SPORT BAR BOLTS 19 N·m (14 ft. lbs.)

7 - LEFT SPORT BAR

8 - SPORT BAR TO B-PILLAR BOLTS 19 N·m (14 ft. lbs.)

9 - LEFT SIDE BAR

10 - SIDE BAR TO WINDSHIELD FRAME BOLTS 23 N·m (17 ft. lbs.)

11 - RIGHT SIDE BAR

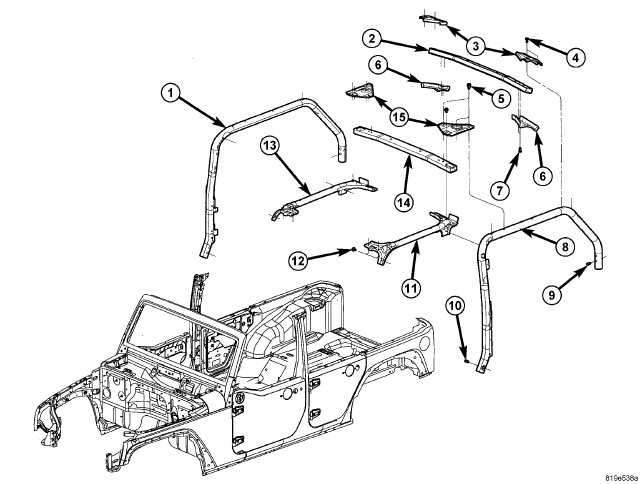

4 DOOR EXPLODED VIEW

1 - RIGHT SIDE SPORT BAR

2 - REAR CROSS BAR

3 - REAR CROSS BAR BRACKETS

4 - REAR CROSS BAR BRACKETS BOLTS 19 N·m (14 ft. lbs.)

5 - FRONT CROSS BAR BRACKETS BOLTS 19 N·m (14 ft. lbs.)

6 - REAR CROSS BAR LOWER BRACKETS

7 - REAR CROSS BAR LOWER BRACKET BOLTS 19 N·m (14 ft. lbs.)

8 - LEFT SIDE SPORT BAR

9 - REAR SPORT BAR BOLTS 19 N·m (14 ft. lbs.)

10 - SPORT BAR B-PILLAR BOLTS 19 N·m (14 ft. lbs.)

11 - LEFT SIDE SPORT BAR

12 - SIDE BAR TO WINDSHIELD FRAME BOLTS 23 N·m (17 ft. lbs.)

13 - RIGHT SIDE BAR

14 - FRONT CROSS BAR

15 - FRONT CROSS BAR BRACKETS


REMOVAL

REMOVAL


4 DOOR EXPLODED VIEW

1 - RIGHT SIDE SPORT BAR

2 - REAR CROSS BAR

3 - REAR CROSS BAR BRACKETS

4 - REAR CROSS BAR BRACKETS BOLTS 19 N·m (14 ft. lbs.)

5 - FRONT CROSS BAR BRACKETS BOLTS 19 N·m (14 ft. lbs.)

6 - REAR CROSS BAR LOWER BRACKETS

7 - REAR CROSS BAR LOWER BRACKET BOLTS 19 N·m (14 ft. lbs.)

8 - LEFT SIDE SPORT BAR

9 - REAR SPORT BAR BOLTS 19 N·m (14 ft. lbs.)

10 - SPORT BAR B-PILLAR BOLTS 19 N·m (14 ft. lbs.)

11 - LEFT SIDE SPORT BAR

12 - SIDE BAR TO WINDSHIELD FRAME BOLTS 23 N·m (17 ft. lbs.)

13 - RIGHT SIDE BAR

14 - FRONT CROSS BAR

15 - FRONT CROSS BAR BRACKETS


  1. Remove the sport bar covers. (Refer to 23 - Body/Interior/COVER, Sport Bar - Removal)

    2.
  2. Remove the windshield frame bolts (12).

    3.
  3. Remove the front cross bar bolts (5) and separate the cross bar (14) and brackets (15).

    4.
  4. Remove the rear cross bar bolts (4) and (7) and separate the rear cross bar (2).

    5.
  5. Remove the B-pillar trim. (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Removal) .

    6.
  6. Remove the B-pillar bolts (10).

    7.
  7. Remove the rear bolts (9) and separate the side sports bars (1) and (8).

    8.

INSTALLATION

INSTALLATION


4 DOOR EXPLODED VIEW

1 - RIGHT SIDE SPORT BAR

2 - REAR CROSS BAR

3 - REAR CROSS BAR BRACKETS

4 - REAR CROSS BAR BRACKETS BOLTS 19 N·m (14 ft. lbs.)

5 - FRONT CROSS BAR BRACKETS BOLTS 19 N·m (14 ft. lbs.)

6 - REAR CROSS BAR LOWER BRACKETS

7 - REAR CROSS BAR LOWER BRACKET BOLTS 19 N·m (14 ft. lbs.)

8 - LEFT SIDE SPORT BAR

9 - REAR SPORT BAR BOLTS 19 N·m (14 ft. lbs.)

10 - SPORT BAR B-PILLAR BOLTS 19 N·m (14 ft. lbs.)

11 - LEFT SIDE SPORT BAR

12 - SIDE BAR TO WINDSHIELD FRAME BOLTS 23 N·m (17 ft. lbs.)

13 - RIGHT SIDE BAR

14 - FRONT CROSS BAR

15 - FRONT CROSS BAR BRACKETS


  1. Install the sport bars (1) and (8) into the B-pillar. Install the B-pillar (10) and rear bolts (9).

    2.
  2. Install the rear cross bar (2), the brackets (3) and (6) and the bolts (4).

    3.
  3. Install the side bars (11) and (13). Install the windshield frame bolts (12).

    4.
  4. Install the front cross bar (14), the brackets (15) and the bolts (5).

    5.
  5. Tighten the B-pillar (10) and rear bolts (9), to 19 N·m (14 ft. lbs.).

    6.
  6. Tighten the cross bar bolts (4) and (5), to 19 N·m (14 ft. lbs.).

    7.
  7. Tighten the windshield frame bolts to 19 N·m (14 ft. lbs.).

    8.
  8. Install the sport bar covers. (Refer to 23 - Body/Interior/COVER, Sport Bar - Installation) .

    9.
  9. Install the B-pillar trim. (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Installation) .

    10.
