PANEL, Header

• REMOVAL
• INSTALLATION

REMOVAL

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

1. Remove the upper A-pillar trim (2), (Refer to 23 - Body/Interior/PANEL, A-Pillar Trim - Removal) .

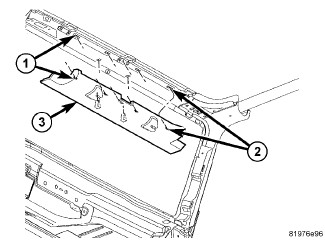

2. Using a trim stick C-4755 or equivalent, separate the retaining clips (1) and (2) and remove the windshield molding (3).




INSTALLATION

INSTALLATION

1. Position the windshield molding (3) onto the windshield header and seat the clips (1) and (2) fully.




2. Install the upper A-pillar trim (2), (Refer to 23 - Body/Interior/PANEL, A-Pillar Trim - Installation)
