2014 Jeep Wrangler JK Factory Service Manual 19 - Steering

ARM, Pitman

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

  1. Raise and support the vehicle.

    2.
  2. Remove the track bar retaining bolt (2) at the frame and lower the track bar (1).

    3.
  3. Remove the pitman arm (1) retaining nut at the drag link (3).

    4.

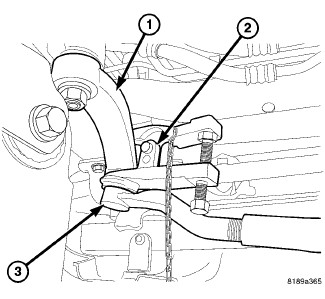

  4. Using the Ball Joint Remover 9360 (2) or equivalent, separate the pitman arm (1) from the drag link (3).

    5.

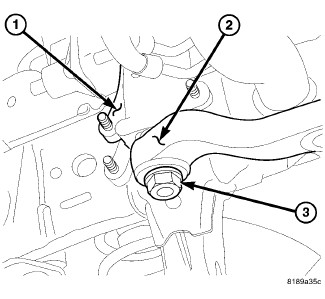

  5. Mark the steering gear (1) shaft and pitman arm (2) for installation reference.

    6.
  6. Remove the pitman arm retaining nut (3).

    7.

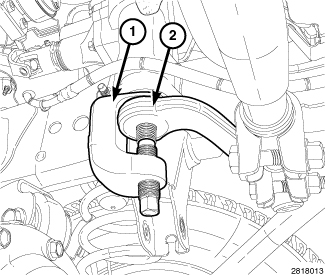

  7. Using the Ball Joint Press C-4150A (1) or equivalent, remove the pitman arm (2) from the steering gear (Refer to 19 - Steering/Linkage/ARM, Pitman - Removal) .

    8.

INSTALLATION

  1. Align and install the pitman arm (2) on steering gear shaft.

    2.
  2. Install the washer and nut (3) on the shaft and tighten the nut to 265 N·m (195 ft. lbs.).

    3.
  3. Install drag link ball stud to pitman arm, install nut and tighten to 105 N·m (77 ft. lbs.).

    NOTE:

    It may be necessary to pry the axle assembly over to install the track bar (1) at the frame rail.


    4.
  4. Position the track bar (1) at the axle bracket, install the nut and bolt (2) at the frame rail bracket and tighten to 169 N·m (125 ft. lbs.).

    5.
  5. Remove the support and lower the vehicle.

    6.
  6. Fill power steering system to proper level, (Refer to 19 - Steering - Standard Procedure) .

    7.
  7. Check the toe setting, (Refer to 02 - Front Suspension/Wheel Alignment - Standard Procedure) .

    8.
