Lexus IS250 · Service Manual BRAKE

REMOVAL

Removal / installation


1. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY (for Manual Transmission)

HINT:
Refer to the procedures up to "REMOVE PARKING BRAKE LEVER" (Click here).


2. REMOVE PARKING BRAKE PEDAL ASSEMBLY (for Automatic Transmission)

HINT:
Refer to the procedures up to "REMOVE PARKING BRAKE PEDAL" (Click here).


3. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

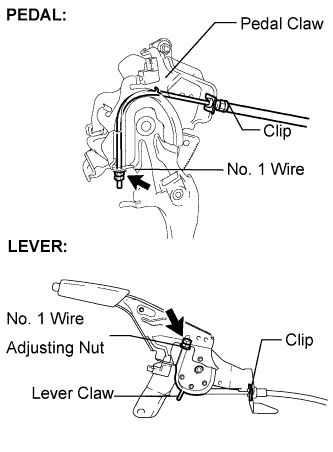

  1. C124892E02
    Pull up the parking brake claw.

  1. Remove the lock nut and No. 1 wire adjusting nut of the No. 1 parking brake cable assembly from the parking brake.

  1. Remove the clip and No. 1 parking brake cable assembly from the parking brake.


4. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR

  1. C117266
    Remove the 2 nuts and the No. 2 differential support protector.


5. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR

HINT:
Removal procedure of the No. 1 differential support protector is the same as that of the No. 2 differential support protector.


6. REMOVE REAR WHEEL

7. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

  1. G032829
    Remove the 2 bolts and separate the rear disc brake caliper assembly.

    NOTICE:
    Hang the caliper with wire or equivalent.

  1. Remove the No. 1 caliper plate (2 pieces).


8. REMOVE REAR DISC

  1. Release the parking brake.

  1. C107205E02
    Put matchmarks on the rear disc and rear axle hub.

  1. Remove the rear disc.

    HINT:
    If the disc cannot be removed easily, turn the shoe adjuster until the wheel turns smoothly.


9. REMOVE NO. 2 PARKING BRAKE SHOE RETURN SPRING

  1. C104639E01
    Using SST, remove the No. 2 parking brake shoe return spring.
    SST
    09703-30011


10. REMOVE NO. 1 PARKING BRAKE SHOE RETURN SPRING

  1. C104640E01
    Using SST, remove the No. 1 parking brake shoe return spring.
    SST
    09703-30011


11. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET

  1. G033601
    Slide the parking brake shoe, and remove the parking brake shoe adjusting screw set.


12. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY

  1. G032834E01
    Using SST, remove the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.
    SST
    09718-00010

  1. Remove the No. 1 parking brake shoe assembly.

    HINT:
    Use the service hole to retain the No. 1 hold down spring pin with your finger.


13. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY

  1. C107309E02
    Using SST, remove the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.
    SST
    09718-00010

  1. Remove the No. 2 parking brake shoe assembly.

    HINT:
    Use the service hole to retain the No. 1 hold down spring pin with your finger.


14. REMOVE PARKING BRAKE SHOE LEVER

  1. C126986
    Remove the parking brake shoe lever.


15. REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY LH

  1. Remove the 3 bolts and disengage the 2 clamps and No. 2 parking brake cable assembly LH.

  1. Separate the No. 2 parking brake cable assembly LH from the parking brake equalizer.

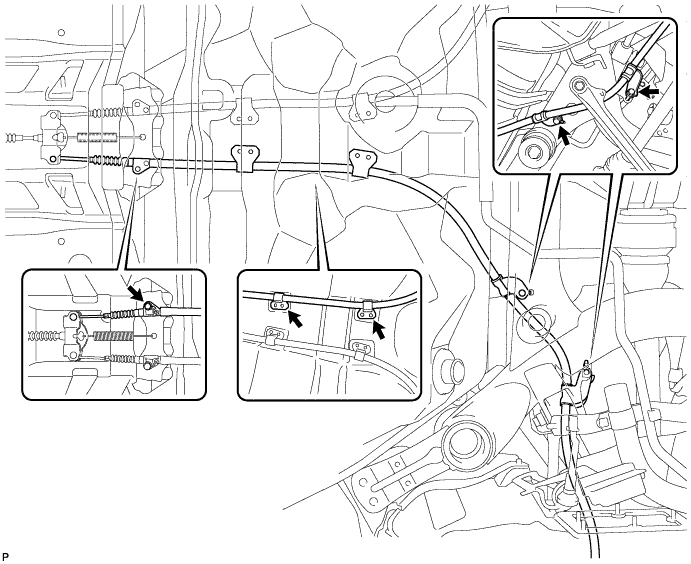

    C121222

  1. G032828
    Remove the 2 nuts and No. 2 parking brake cable assembly.

  1. C129646E01
    Remove the 2 cable support brackets from the No. 2 parking brake cable assembly.
