Light Control Switch Circuit
Circuit diagnosis
DESCRIPTION
The combination switch ECU (windshield wiper switch assembly) receives the following switch information.- Light control switch position is Off, Tail, Head, or Auto
- Headlight dimmer switch position is High, Low, or Flash (Pass)
- Turn signal switch position is LH, RH or Off
- Fog light switch position is On or Off
The headlight dimmer switch assembly includes the light control, headlight dimmer, turn signal, and fog light switches.

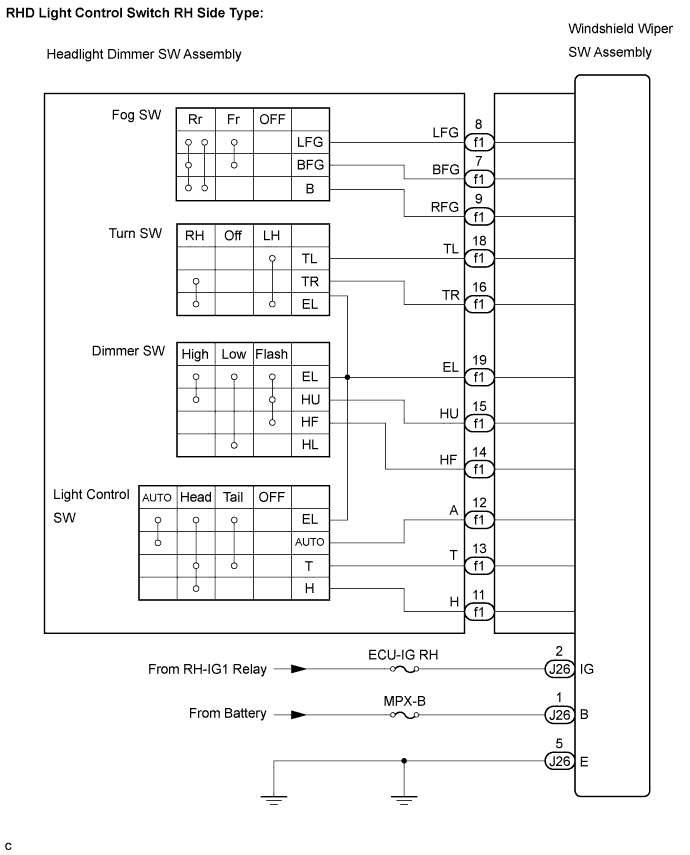

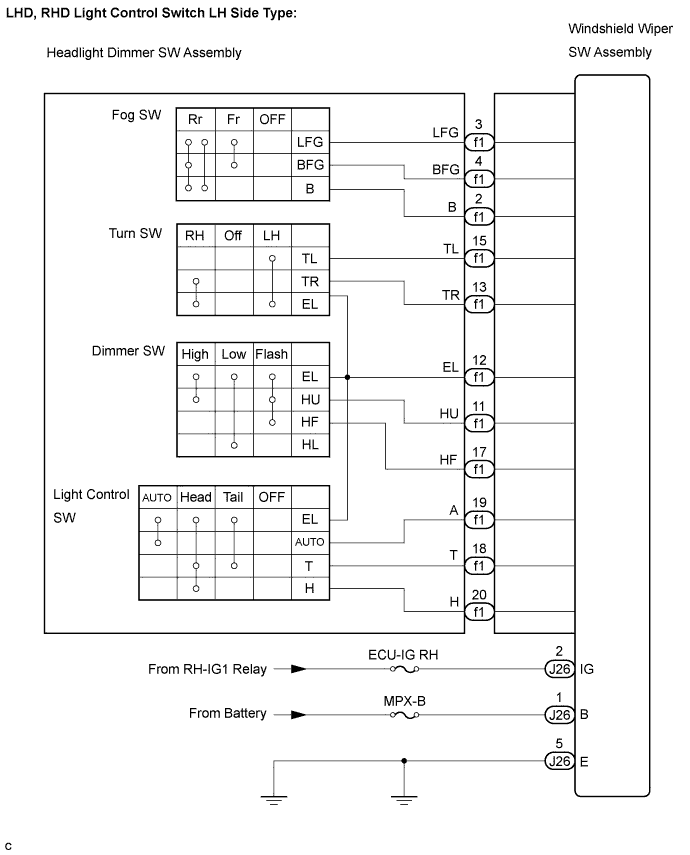

WIRING DIAGRAM




INSPECTION PROCEDURE
- HINT:
- Before starting the procedure, check that the multiplex communication system DTCs are not output (Click here).
| 1. READ VALUE OF INTELLIGENT TESTER |
Connect the intelligent tester to the DLC3.
Turn the engine switch on (IG).
Turn the intelligent tester on.
Select the item(s) in the DATA LIST, and read the display on the intelligent tester.
DATA LIST: COMBI SW (Combination Switch ECU) Item
Measurement Item / Display
(Range)
Normal Condition
Diagnostic Note
Front Fog Light SW
Front fog light switch signal / ON or OFF
ON: Front fog light switch is in ON position
OFF: Front fog light switch is not in ON position
-
Passing Light SW
Passing light switch signal / ON or OFF
ON: Headlight dimmer switch is in FLASH (PASS) position
OFF: Headlight dimmer switch is not in FLASH (PASS) position
-
Dimmer HI Switch
High beam switch signal / ON or OFF
ON: Headlight dimmer switch is in HI position
OFF: Headlight dimmer switch is not in HI position
-
Light Auto Switch
Auto light switch signal / ON or OFF
ON: Light control switch is in AUTO position
OFF: Light control switch is not in AUTO position
-
Head Light Switch
Headlight control switch signal / ON or OFF
ON: Light control switch is in HEAD position
OFF: Light control switch is not in HEAD position
-
Tail Light Switch
Taillight switch signal / ON or OFF
ON: Light control switch is in TAIL or HEAD position
OFF: Light control switch is not in OFF position
-
Turn Left Switch
Turn signal switch LH signal / ON or OFF
ON: Light control switch is in LH position
OFF: Light control switch is not in LH position
-
Rear Fog Light SW
Rear fog light switch signal / ON or OFF
ON: Rear fog light switch is in ON position
OFF: Rear fog light switch is not in ON position
-
Turn Right Switch
Turn signal switch RH signal / ON or OFF
ON: Light control switch is in RH position
OFF: Light control switch is not in RH position
-
IG Switch Signal
Engine switch signal / ON or OFF
ON: Engine switch on (IG)
OFF: Engine switch off
-
- OK:
- Condition information can be displayed.
|
|
||||
| OK | ||
| ||
| 2. INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY |
- HINT:
- Inspect the items that did not change as a result of monitoring the DATA LIST.
Remove the headlight dimmer switch assembly.

Measure the resistance according to the value(s) in the table below.
- Standard resistance:
- Light Control Switch (LHD, RHD light control switch LH side type):
Tester Connection
Switch Condition
Specified Condition
f1-12 (EL) - f1-18 (T)
OFF
10 kΩ or higher
f1-18 (T) - f1-19 (AUTO)
OFF
10 kΩ or higher
f1-19 (AUTO) - f1-20 (H)
OFF
10 kΩ or higher
f1-12 (EL) - f1-18 (T)
TAIL
Below 1 Ω
f1-12 (EL) - f1-18 (T)
HEAD
Below 1 Ω
f1-18 (T) - f1-20 (H)
HEAD
Below 1 Ω
f1-12 (EL) - f1-19 (AUTO)
AUTO
Below 1 Ω
- Light Control Switch (RHD light control switch RH side type):
Tester Connection
Switch Condition
Specified Condition
f1-19 (EL) - f1-13 (T)
OFF
10 kΩ or higher
f1-13 (T) - f1-12 (AUTO)
OFF
10 kΩ or higher
f1-12 (AUTO) - f1-11 (H)
OFF
10 kΩ or higher
f1-19 (EL) - f1-13 (T)
TAIL
Below 1 Ω
f1-19 (EL) - f1-13 (T)
HEAD
Below 1 Ω
f1-13 (T) - f1-11 (H)
HEAD
Below 1 Ω
f1-19 (EL) - f1-12 (AUTO)
AUTO
Below 1 Ω
- Headlight Dimmer Switch (LHD, RHD light control switch LH side type):
Tester Connection
Switch Condition
Specified Condition
f1-11 (HU) - f1-12 (EL)
LOW BEAM
Below 1 Ω
f1-11 (HU) - f1-12 (EL)
HI BEAM
Below 1 Ω
f1-12 (EL) - f1-17 (HF)
HI BEAM
Below 1 Ω
- Headlight Dimmer Switch (RHD light control switch RH side type):
Tester Connection
Switch Condition
Specified Condition
f1-15 (HU) - f1-19 (EL)
LOW BEAM
Below 1 Ω
f1-15 (HU) - f1-19 (EL)
HI BEAM
Below 1 Ω
f1-19 (EL) - f1-14 (HF)
HI BEAM
Below 1 Ω
- Turn Signal Switch (LHD, RHD light control switch LH side type):
Tester Connection
Switch Condition
Specified Condition
f1-12 (EL) - f1-13 (TR)
Right turn
Below 1 Ω
f1-12 (EL) - f1-13 (TR)
Neutral
10 kΩ or higher
f1-12 (EL) - f1-15 (TL)
Neutral
10 kΩ or higher
f1-12 (EL) - f1-15 (TL)
Left turn
Below 1 Ω
- Turn Signal Switch (RHD light control switch RH side type):
Tester Connection
Switch Condition
Specified Condition
f1-19 (EL) - f1-16 (TR)
Right turn
Below 1 Ω
f1-19 (EL) - f1-16 (TR)
Neutral
10 kΩ or higher
f1-19 (EL) - f1-18 (TL)
Neutral
10 kΩ or higher
f1-19 (EL) - f1-18 (TL)
Left turn
Below 1 Ω
- Fog Light Switch (LHD, RHD light control switch LH side type):
Tester Connection
Switch Condition
Specified Condition
f1-3 (LFG) - f1-4 (BFG)
OFF
10 kΩ or higher
f1-4 (BFG) - f1-2 (B)
OFF
10 kΩ or higher
f1-3 (LFG) - f1-2 (B)
OFF
10 kΩ or higher
f1-3 (LFG) - f1-4 (BFG)
Front fog light switch ON
Below 1 Ω
f1-3 (LFG) - f1-4 (BFG)
Rear fog light switch ON
Below 1 Ω
f1-4 (BFG) - f1-2 (B)
Rear fog light switch ON
Below 1 Ω
f1-3 (LFG) - f1-2 (B)
Rear fog light switch ON
Below 1 Ω
- Fog Light Switch (RHD light control switch RH side type):
Tester Connection
Switch Condition
Specified Condition
f1-8 (LFG) - f1-7 (BFG)
OFF
10 kΩ or higher
f1-7 (BFG) - f1-9 (RFG)
OFF
10 kΩ or higher
f1-8 (LFG) - f1-9 (RFG)
OFF
10 kΩ or higher
f1-8 (LFG) - f1-7 (BFG)
Front fog light switch ON
Below 1 Ω
f1-8 (LFG) - f1-7 (BFG)
Rear fog light switch ON
Below 1 Ω
f1-7 (BFG) - f1-9 (RFG)
Rear fog light switch ON
Below 1 Ω
f1-8 (LFG) - f1-9 (RFG)
Rear fog light switch ON
Below 1 Ω
|
|
||||
| OK | |
| 3. CHECK HARNESS AND CONNECTOR |
Disconnect the J26 windshield wiper switch assembly connector.

Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
Condition
Specified Condition
J26-5 (E) - Body ground
Always
Below 1 Ω
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
Condition
Specified Condition
J26-1 (B) - J26-5 (E)
Always
10 to 14 V
J26-2 (IG) - J26-5 (E)
Engine switch on (IG)
10 to 14 V
|
|
||||
| OK | ||
| ||
