DISASSEMBLY

Removal / installation


1. REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

  1. B126812
    Disengage the claw and remove the sliding roof drive gear bracket.

  1. B122187
    Remove the 2 bolts and sliding roof drive gear sub-assembly.


2. REMOVE SUNSHADE TRIM SUB-ASSEMBLY

  1. B122208E01
    Remove the 2 screws and sliding roof piece sub-assemblies LH and RH.

  1. Slide and remove the sunshade trim sub-assembly.


3. REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

NOTICE:
Do not disassemble the sliding roof drive cable sub-assembly except when replacing it.

  1. B122209
    Remove the 2 screws and sliding roof side stoppers.

  1. B122239E01

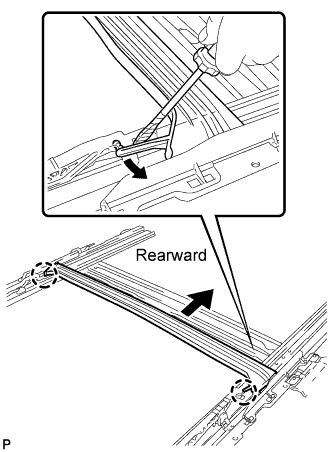

    Using a screwdriver, disengage the 2 claws. Then slide the sliding roof drip channel rearward to remove it.

    HINT:
    Tape the screwdriver tip before use.

  1. B122194
    Hold down the window deflector.

  1. B122193
    Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to remove it.
