Lexus IS250 · Service Manual BODY

REASSEMBLY

Removal / installation


1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

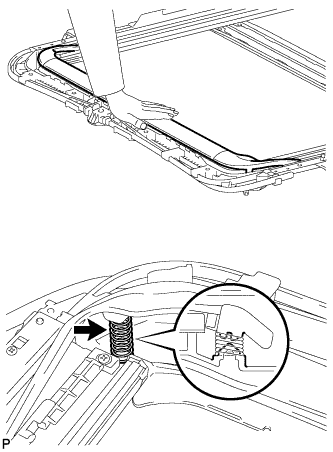

  1. B122195
    Hold down the window deflector.

    NOTICE:
    Make sure that the spring indicated by the arrow in the illustration is securely installed.

  1. B122192
    Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.

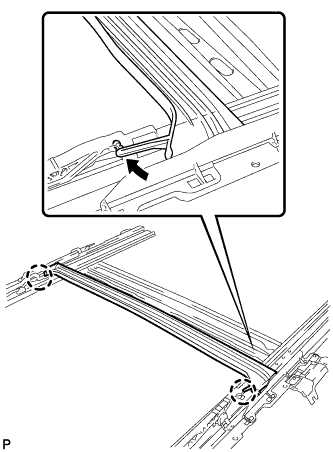

  1. B122241E01
    Engage the 2 claws and install the sliding roof drip channel.

  1. B122209
    Install the 2 sliding roof side stoppers with the 2 screws.

    Torque:
    2.0 N*m{ 20 kgf*cm , 18 in.*lbf }


2. ADJUST FULLY CLOSED POSITION

  1. B122196E01
    Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction as indicated by the arrows in the illustration and align the matchmarks.

    HINT:
    Tape the screwdriver tip before use.


3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

  1. Insert the sunshade trim into the sliding roof housing sub-assembly.

  1. B122208
    Install the sliding roof piece sub-assemblies LH and RH with the 2 screws.

    Torque:
    2.0 N*m{ 20 kgf*cm , 18 in.*lbf }


4. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

  1. B122187
    Install the sliding roof drive gear sub-assembly with the 2 bolts.

    Torque:
    5.4 N*m{ 55 kgf*cm , 48 in.*lbf }

  1. B126812
    Engage the claw and install the sliding roof drive gear bracket.
