BRAKE SYSTEM (OTHER): HYDRAULIC BRAKE BOOSTER: REMOVAL (2008 LX570)

Home › Brake › Brake System › BRAKE SYSTEM (OTHER): HYDRAULIC BRAKE BOOSTER

Last Modified: 11-27-2007		1.6 A
Service Category: Brake	Section: Brake System
Model Year: 2008	Model: LX570	Doc ID: RM00000171T00HX
Title: BRAKE SYSTEM (OTHER): HYDRAULIC BRAKE BOOSTER: REMOVAL (2008 LX570)

REMOVAL

NOTICE:

Be sure not to allow the pump to contact the floor; support it with the booster body. If the pump contacts the floor, the red brake tube between the pump and booster body may be deformed, the operating sound of the pump may become loud enough to hear within the cabin, and fluid may leak.

When installing, coat the parts indicated by arrows with lithium soap base glycol grease .
As high pressure is applied to the No. 1 brake actuator tube, never deform it.
Until the work is over, do not turn the engine switch on (IG).
Before starting the work, make sure that the engine switch is off and depress the brake pedal more than 20 times.

HINT:

When pressure in the power supply system is released, the reaction force becomes light and the stroke becomes longer.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

w/ Navigation System:

After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

2. DRAIN BRAKE FLUID

NOTICE:

Wash off brake fluid immediately if it comes into contact with a painted surface.

3. REMOVE FRONT DOOR SCUFF PLATE LH

4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

5. REMOVE COWL SIDE TRIM BOARD LH

6. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

7. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

8. REMOVE PUSH ROD PIN

9. REMOVE HYDRAULIC BRAKE BOOSTER ASSEMBLY

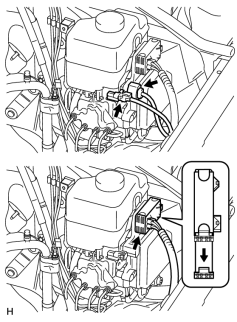

(a) Disconnect the 3 connectors from the hydraulic brake booster assembly.

(b) Use tags or make a memo to identify the place to reconnect.

(d) Remove the 4 nuts and pull out the hydraulic brake booster assembly.

10. REMOVE BRAKE BOOSTER GASKET

(a) Remove the brake booster gasket from the hydraulic brake booster assembly.
