REMOVAL
1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH
3. REMOVE NO. 2 ENGINE UNDER COVER
4. REMOVE NO. 1 ENGINE UNDER COVER
5. REMOVE FRONT BUMPER ASSEMBLY (w/ Air Cooled Transmission Oil Cooler)
(a) Remove the front bumper
.
6. REMOVE FRONT FENDER APRON SEAL FRONT RH
7. REMOVE FRONT FENDER APRON SEAL REAR RH

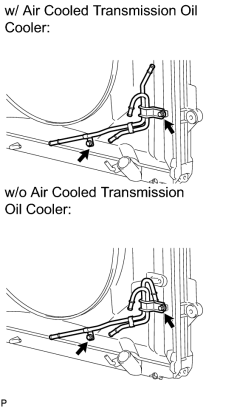

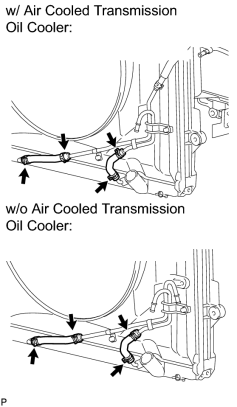

8. DISCONNECT TRANSMISSION OIL COOLER HOSE
(a) Remove the bolt and move the water by-pass pipe so that the 2 transmission oil cooler hoses can be disconnected.
(b) Disconnect the 2 transmission oil cooler hoses.

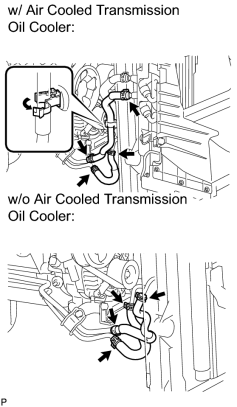

9. DISCONNECT INLET NO. 1 OIL COOLER HOSE AND OUTLET NO. 1 OIL COOLER HOSE
(a) w/ Air Cooled Transmission Oil Cooler:
(1) Detach the claw to open the flexible hose clamp.
(2) Disconnect the inlet and outlet oil cooler hoses.
(b) w/o Air Cooled Transmission Oil Cooler:
(1) Disconnect the inlet and outlet oil cooler hoses.
10. DISCONNECT INLET NO. 2 OIL COOLER HOSE AND INLET NO. 3 OIL COOLER HOSE
(a) Disconnect the 2 inlet oil cooler hoses.
11. DISCONNECT INLET NO. 4 OIL COOLER HOSE (w/ Air Cooled Transmission Oil Cooler)
12. REMOVE OIL COOLER TUBE
(a) Remove the 2 bolts and oil cooler tube.
13. REMOVE TRANSMISSION OIL COOLER AIR DUCT (w/ Air Cooled Transmission Oil Cooler)
(a) Remove the 4 bolts and transmission oil cooler air duct.
14. REMOVE OIL COOLER ASSEMBLY (w/ Air Cooled Transmission Oil Cooler)
(a) Remove the 4 bolts and oil cooler.
|
(b) Remove the 5 bolts and rear transmission oil cooler air duct. |
|
(c) Disconnect the oil cooler inlet hose and outlet hose and remove the tube. |
|
|
