| Title: FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: REMOVAL (2008 LX570) | ||
REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH
4. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
5. LOOSEN FRONT NO. 1 STABILIZER BRACKET LH
6. LOOSEN FRONT NO. 1 STABILIZER BRACKET RH
7. REMOVE FRONT STABILIZER LINK ASSEMBLY LH
8. REMOVE FRONT STABILIZER LINK ASSEMBLY RH
9. DISCONNECT FRONT SHOCK ABSORBER WITH COIL SPRING LH
(a) Remove the nut and bolt, and disconnect the shock absorber from the lower side.
10. DISCONNECT FRONT LOWER BALL JOINT ATTACHMENT LH
(a) Remove the 2 bolts and disconnect the attachment from the steering knuckle.
11. REMOVE FRONT NO. 1 SUSPENSION ARM LOWER SUB-ASSEMBLY LH
|
(a) Support the front suspension LH with a jack. |
|
(b) Place matchmarks on the No. 2 camber adjusting cam and No. 2 suspension toe adjusting plate. |
(c) Remove the nut, washer, No. 2 camber adjusting cam, camber adjusting cam assembly, bolt, toe adjusting cam, No. 2 suspension toe adjusting plate and front No. 1 suspension arm lower LH.
12. REMOVE FRONT LOWER BALL JOINT ATTACHMENT LH
(a) Remove the cotter pin and nut.
|

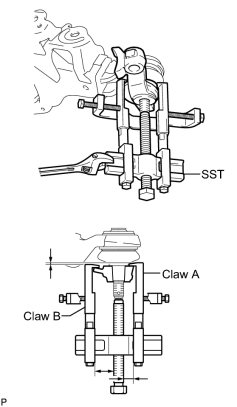

(b) Using SST, remove the lower ball joint attachment. SST: 09950-40011 09951-04010 09953-04020 09954-04010 09955-04031 09958-04011 09952-04010 SST: 09955-04090 HINT:
Claw A 09955-04090 HINT: Claw B 09955-04031 |
|
|
