| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Exterior | Section: Door/Hatch | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002KIG005X |
| Title: DOOR / HATCH: FUEL LID LOCK CONTROL CABLE ASSEMBLY: REMOVAL (2008 LX570) | ||
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
-
w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
2. REMOVE FRONT FLOOR CARPET ASSEMBLY
(a) Remove the front floor carpet assembly
.
3. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
(a) Remove the front quarter trim panel assembly RH
.
4. REMOVE NO. 1 WOOFER BOX SPEAKER ASSEMBLY (for 19 Speakers)
5. REMOVE FUEL FILLER OPENING LID LOCK RETAINER
(a) Turn the cable counterclockwise and remove the cable from the retainer.
|
(b) Turn the lock retainer counterclockwise and remove the lock retainer. |
6. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
|
(a) Detach the 2 claws. |
(b) Disconnect the fuel lid lock control cable and remove the fuel lid lock open lever.
7. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

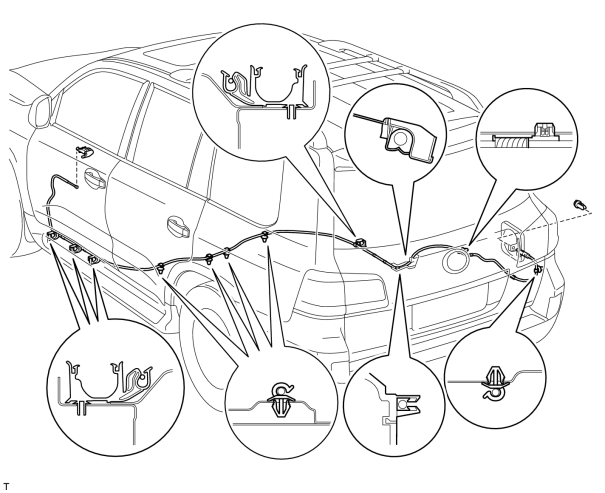

(a) Using a screwdriver, disconnect the clamps shown in the illustration.
HINT:
Tape the screwdriver tip before use.
(b) Remove the lock control cable.
|
|
