Title: 3UR-FE ENGINE CONTROL: KNOCK SENSOR: INSTALLATION (2008 LX570)

INSTALLATION

1. INSTALL KNOCK SENSOR

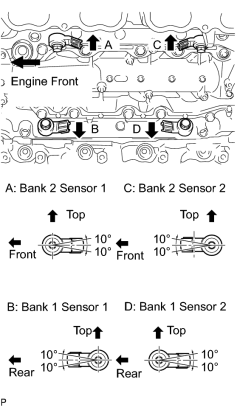

(a) Install the 4 sensors with the 4 bolts so that the sensors are angled as shown in the illustration.

Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

NOTICE:

The acceptable installation angle of the sensor is between 10° upward and downward from the horizontal position.

(b) Connect the 4 sensor connectors.

2. INSTALL NO. 1 ENGINE COVER 3UR-FE EMISSION CONTROL: AIR SWITCHING VALVE: INSTALLATION (2008 LX570)+

3. INSTALL NO. 2 ENGINE COVER 3UR-FE EMISSION CONTROL: AIR SWITCHING VALVE: INSTALLATION (2008 LX570)+

4. INSTALL INTAKE MANIFOLD

(a) Install the intake manifold 3UR-FE INTAKE / EXHAUST: INTAKE MANIFOLD: INSTALLATION (2008 LX570) .
