Title: WIPER / WASHER: WIPER ECU: INSTALLATION (2008 LX570)

INSTALLATION

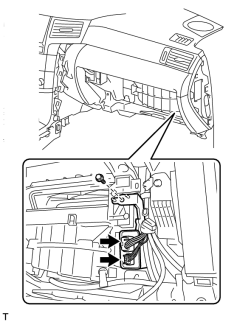

1. INSTALL WINDSHIELD WIPER ECU

(a) Install the windshield wiper ECU with the screw.

(b) Connect the 2 connectors.

2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: INSTALLATION (2008 LX570)+

3. INSTALL INSTRUMENT PANEL BOX DOOR KNOB INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: INSTALLATION (2008 LX570)+

4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

(a) Install the front passenger side knee airbag assembly SUPPLEMENTAL RESTRAINT SYSTEMS: KNEE AIRBAG ASSEMBLY (for Front Passenger Side): INSTALLATION (2008 LX570) .
