1. INSTALL REAR NO. 2 SEAT OUTER BELT ASSEMBLY

(a) Align the claws with the seat belt positioning holes and install the retractor of the seat belt as shown in the illustration.

(b) Install the seat belt with the bolt.

Torque: 42 N·m (428 kgf·cm, 31 ft·lbf)

(c) Install the seat belt shoulder anchor with the bolt. Torque: 42 N·m (428 kgf·cm, 31 ft·lbf)

(d) Attach the 2 claws to close the seat belt shoulder anchor cover.

2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY

HINT:

When installing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

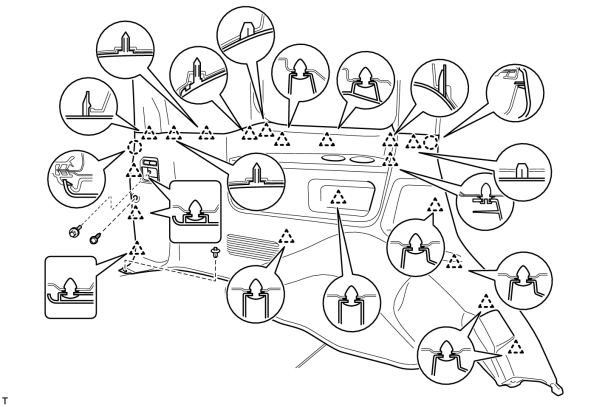

(a) w/ Manual Folding-up Function:

(1) Connect the thermistor connector, power outlet socket connector and rear seat lock control lever cable.

(2) Attach the 19 clips and 2 claws to install the quarter trim panel.

(3) Install the screw, clip and bolt.

Torque: 12 N·m (122 kgf·cm, 9 ft·lbf)

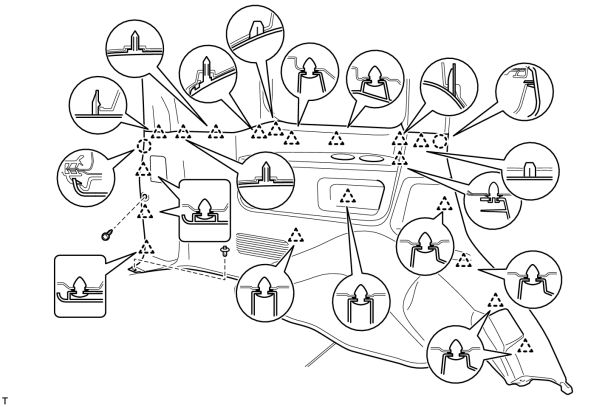

(b) w/ Automatic Folding-up Function:

(1) Connect the thermistor connector and power outlet socket connector.

(2) Attach the 19 clips and 2 claws to install the quarter trim panel.

(3) Install the screw and clip.

(c) for LH Side: (1) Install the rear No. 2 seat belt anchor LH with the bolt. Torque: 42 N·m (428 kgf·cm, 31 ft·lbf) NOTICE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

(d) for RH Side: (1) Install the rear No. 2 seat belt anchor RH with the bolt. Torque: 42 N·m (428 kgf·cm, 31 ft·lbf) (2) Attach the 3 claws to install the cover.

(e) Install the rear No. 1 seat belt anchor with the bolt. Torque: 42 N·m (428 kgf·cm, 31 ft·lbf)

(f) Attach the 3 claws to install the cover.

8. INSTALL REAR NO. 2 SEAT ASSEMBLY

(a) w/ Automatic Folding-up Function:
