Title: SEAT BELT: REAR NO. 2 SEAT INNER BELT ASSEMBLY: REMOVAL (2008 LX570)

REMOVAL

HINT:

  • Use the same procedures for the RH side and LH side.
  • The procedures listed below are for the LH side.

1. REMOVE REAR NO. 2 SEAT ASSEMBLY LH

(a) w/ Automatic Folding-up Function:

Remove the rear No. 2 seat assembly LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): REMOVAL (2008 LX570) .

(b) w/ Manual Folding-up Function:

Remove the rear No. 2 seat assembly LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Manual Folding-up Function): REMOVAL (2008 LX570) .

2. REMOVE NO. 2 SEAT CUSHION COVER SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

3. REMOVE FOLD SEAT CONTROL ECU

(a) w/ Automatic Folding-up Function:

Remove the fold seat control ECU SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+ .

(b) w/ Manual Folding-up Function:

Remove the fold seat control ECU SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Manual Folding-up Function): DISASSEMBLY (2008 LX570)+ .

4. REMOVE REAR NO. 2 SEAT LEG BRACKET REAR LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

5. REMOVE SEAT ADJUSTER BOLT COVER SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

6. REMOVE NO. 2 RECLINING ADJUSTER RELEASE HANDLE LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

7. REMOVE RECLINING ADJUSTER COVER LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

8. REMOVE RECLINING ADJUSTER COVER RH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

9. REMOVE REAR SEAT RECLINING COVER INNER LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

10. REMOVE REAR SEAT REAR BRACKET COVER REAR SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

11. REMOVE REAR NO. 3 SEAT LEG COVER LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

12. REMOVE NO. 2 SEAT LEG COVER NO. 2 SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

13. REMOVE 3RD SEAT LINK SUB-ASSEMBLY LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

14. REMOVE REAR SEAT CUSHION UNDER COVER LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

15. REMOVE NO. 3 SEAT FRONT BRACKET COVER LH SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

16. REMOVE NO. 3 SEAT LEG COVER NO. 2 SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): DISASSEMBLY (2008 LX570)+

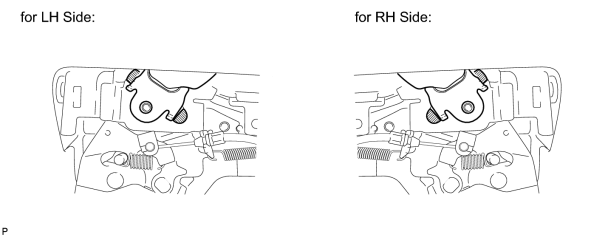

17. REMOVE REAR SEAT INNER BELT SUB-ASSEMBLY (for LH Side)



(a) Remove the nut and belt.

HINT:

The rear No. 2 seat inner belt is fixed with the same nut as the rear seat inner belt. Therefore, it becomes disconnected when the nut is removed.

18. REMOVE REAR SEAT OUTER BELT SUB-ASSEMBLY (for RH Side)



(a) Remove the nut and belt.

HINT:

The rear No. 2 seat inner belt is fixed with the same nut as the rear seat outer belt. Therefore, it becomes disconnected when the nut is removed.

19. REMOVE REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY

(a) Remove the 2 belts.
