REASSEMBLY
HINT:
A bolt without a torque specification is shown in the standard bolt chart
.
1. INSTALL ANTENNA CORD SUB-ASSEMBLY

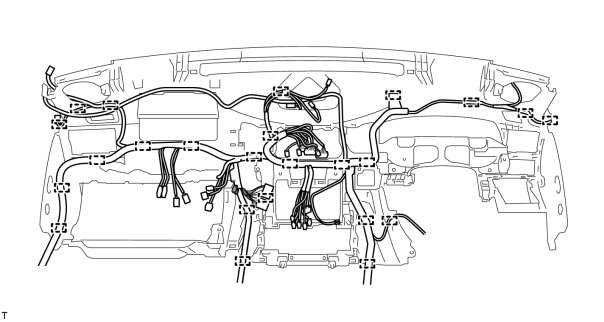

2. INSTALL NO. 2 INSTRUMENT PANEL WIRE
(a) Attach the wire to the clamps to install the wire to the instrument panel.
3. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)
4. INSTALL NO. 2 SIDE DEFROSTER NOZZLE
|
(a) Attach the 2 claws to install the nozzle. |
5. INSTALL NO. 1 SIDE DEFROSTER NOZZLE
|
(a) Attach the 2 claws to install the nozzle. |
6. INSTALL DEFROSTER NOZZLE ASSEMBLY
|
(a) Attach the 11 claws to install the nozzle. |
7. INSTALL FRONT PASSENGER SIDE AIRBAG ASSEMBLY
8. INSTALL REAR NO. 1 AIR DUCT
|
(a) Install the duct with the 2 screws. |
9. INSTALL CENTER HEATER TO REGISTER DUCT
|
(a) Install the duct with the 3 screws. |
|
|
