Title: AUDIO / VIDEO: RADIO ANTENNA CORD: INSTALLATION (2008 LX570)

INSTALLATION

1. INSTALL ANTENNA CORD SUB-ASSEMBLY

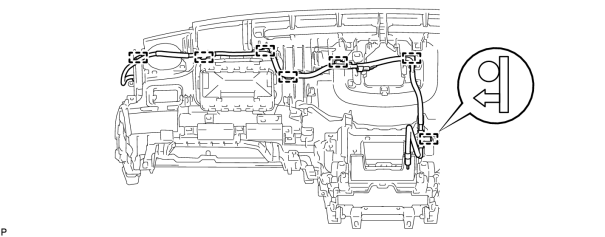

(a) Attach the 7 clamps to install the antenna cord.

2. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

(a) Install the instrument panel safety pad INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: INSTALLATION (2008 LX570) .

3. INSTALL ANTENNA CORD SUB-ASSEMBLY

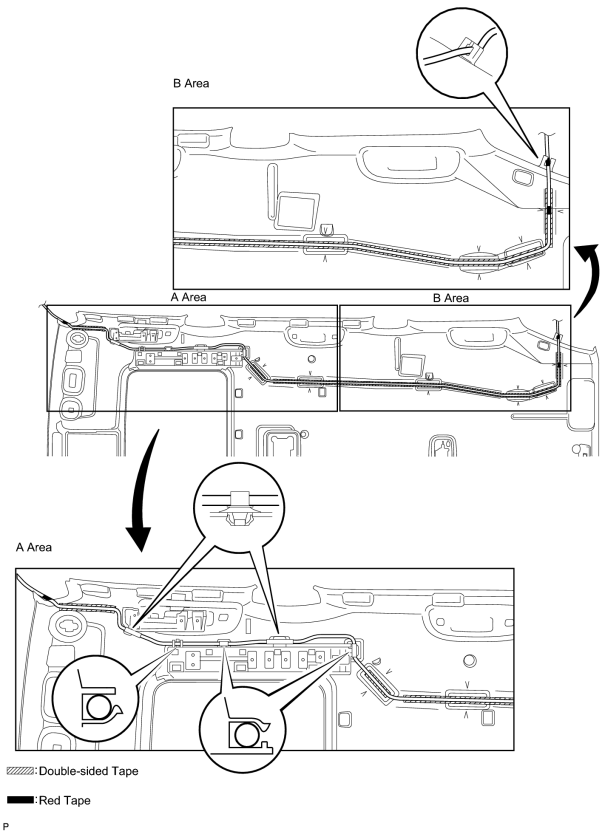

(a) Apply new double-sided tape as shown in the illustration.

HINT:

Attach double-sided tape to the hatched areas shown in the illustration below.



(b) Align the red tape wound around the antenna cord with the V markings on the roof headlining and the notch at the rear of the headlining, and attach the antenna cord to the double-sided tape.

(c) Attach the 2 clamps and fit the antenna into the 3 ribs and the notch.

4. INSTALL ROOF HEADLINING ASSEMBLY

(a) Install the roof headlining INTERIOR PANELS / TRIM: ROOF HEADLINING: INSTALLATION (2008 LX570) .

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION (2008 LX570) .

6. INSTALL ENGINE ROOM SIDE COVER LH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+

7. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: DIAGNOSIS SYSTEM (2008 LX570) .
