| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Suspension | Section: Suspension Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003CMM001X |
| Title: SUSPENSION CONTROL: FRONT ACCELERATION SENSOR: REMOVAL (2008 LX570) | ||
REMOVAL
1. TABLE OF BOLT, SCREW AND NUT
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
3. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH
4. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH
5. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH
6. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH
7. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
8. REMOVE INSTRUMENT SIDE PANEL LH
9. REMOVE NO. 1 SWITCH HOLE BASE
10. REMOVE FRONT DOOR SCUFF PLATE LH
11. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
12. REMOVE COWL SIDE TRIM BOARD LH
13. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
14. REMOVE INSTRUMENT PANEL BOX ASSEMBLY
15. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
16. REMOVE INSTRUMENT SIDE PANEL RH
17. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
18. REMOVE NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH
19. REMOVE FRONT DOOR SCUFF PLATE RH
20. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
21. REMOVE COWL SIDE TRIM BOARD RH
22. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
23. REMOVE INSTRUMENT PANEL BOX DOOR KNOB
24. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

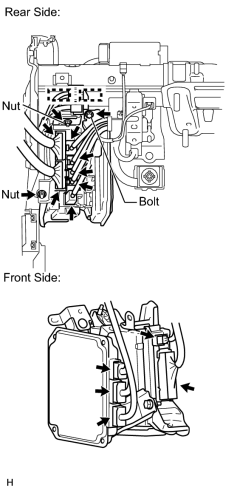

25. REMOVE STEERING CONTROL ECU WITH JUNCTION BLOCK
|
(a) Rear Side: (1) Disconnect the 7 connectors. (2) Detach the 2 clamps. (3) Remove the bolt and 2 nuts. |
(b) Front side:
(1) Disconnect the 5 connectors.
(c) Remove the steering control ECU with junction block from the vehicle.
26. REMOVE ACCELERATION SENSOR (for Driver Side)
|
(a) Disconnect the connector. |
(b) Remove the bolt and sensor.
27. REMOVE ACCELERATION SENSOR (for Front Passenger Side)
|
(a) Disconnect the connector. |
(b) Remove the bolt and sensor.
|
|
