| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Steering | Section: Steering Column | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003DZB001X |
| Title: VARIABLE GEAR RATIO STEERING: STEERING CONTROL ECU: INSTALLATION (2008 LX570) | ||
INSTALLATION
1. INSTALL STEERING CONTROL ECU
(a) Install the ECU to the junction block with the bolt and nut.
Torque: 8.0 N·m (82 kgf·cm, 71 in·lbf)

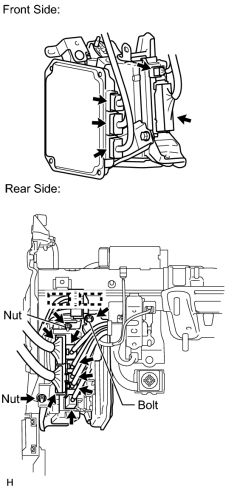

2. INSTALL STEERING CONTROL ECU WITH JUNCTION BLOCK
(a) Front side:
(1) Connect the 5 connectors.
(b) Rear side:
(1) Install the ECU with junction block with the bolt and 2 nuts.
Torque: 8.0 N·m (82 kgf·cm, 71 in·lbf)
(2) Attach the 2 clamps.
(3) Connect the 7 connectors.
3. INSTALL INSTRUMENT PANEL BOX ASSEMBLY
4. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
5. INSTALL NO. 1 SWITCH HOLE BASE
6. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
7. INSTALL COWL SIDE TRIM BOARD LH
8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
9. INSTALL FRONT DOOR SCUFF PLATE LH
10. INSTALL INSTRUMENT SIDE PANEL LH
11. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH
12. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
14. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light
.
|
|
