Title: PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Front): INSTALLATION (2008 LX570)

INSTALLATION

1. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER



HINT:

Use the same procedure to install the No. 1 ultrasonic sensor retainer on the other side.

(a) Align the keyhole and protrusion as shown in the illustration.

(b) Install the ultrasonic sensor retainer to the front bumper cover.

NOTICE:

Do not damage the bumper cover with the protrusion when installing the retainer.

2. INSTALL NO. 1 ULTRASONIC SENSOR



HINT:

Use the same procedure to install the No. 1 ultrasonic sensor on the other side.

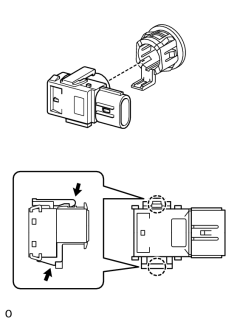

(a) Attach the 2 claws to install the ultrasonic sensor.

3. INSTALL NO. 4 ENGINE ROOM WIRE EXTERIOR PANELS / TRIM: FRONT BUMPER: REASSEMBLY (2008 LX570)+

4. INSTALL FRONT BUMPER COVER EXTERIOR PANELS / TRIM: FRONT BUMPER: INSTALLATION (2008 LX570)+

5. INSTALL RADIATOR GRILLE ASSEMBLY EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+

6. INSTALL UPPER RADIATOR SUPPORT SEAL EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+

7. INSTALL ENGINE ROOM SIDE COVER LH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+

8. INSTALL ENGINE ROOM SIDE COVER RH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+

9. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH EXTERIOR PANELS / TRIM: FRONT BUMPER: INSTALLATION (2008 LX570)+

10. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH EXTERIOR PANELS / TRIM: FRONT BUMPER: INSTALLATION (2008 LX570)+
