RX400h · Service Manual HYBRID SYSTEM

REMOVAL

Removal / installation


1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
(Click here)

2. REMOVE MANIFOLD STAY

  1. Remove the 2 bolts and manifold stay.


3. REMOVE HV TRANSAXLE MASS DAMPER

  1. A109817
    Remove the bolt and transaxle mass damper.


4. REMOVE FRONT FRAME ASSEMBLY

  1. A078403E01
    Remove the 2 nuts and separate the engine mounting insulators RH and LH.

  1. A108133
    Remove the nut and separate engine mounting insulator FR.

  1. A108134
    Remove the 2 bolts and separate the engine mounting insulator RR.


5. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

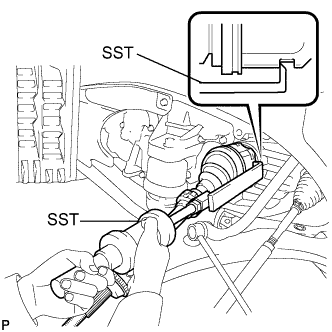

  1. C108263E01
    Using SST, remove the front drive shaft assembly LH.
    SST
    09520-01010
    09520-24010   (09520-32040)

    NOTICE:
    1. Be careful not to damage the transaxle case oil seal and inboard joint boot.
    2. Be careful not to drop the drive shaft assembly.


6. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

  1. C108266J01
    Using pliers, remove the bearing bracket hole snap ring.

  1. C108267
    Remove the bolt from the drive shaft bearing bracket.

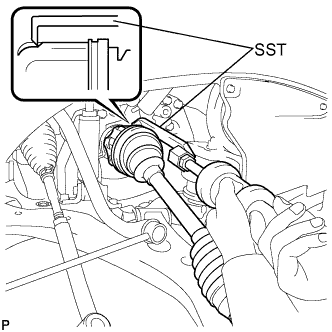

  1. C108268E01
    Using SST, remove the front drive shaft assembly RH.
    SST
    09520-01010
    09520-24010   (09520-32040)

    NOTICE:
    1. Be careful not to damage the transaxle case oil seal and inboard joint boot.
    2. Be careful not to drop the drive shaft assembly.


7. REMOVE FLYWHEEL HOUSING UNDER COVER

  1. C105748
    Remove the 2 bolts and flywheel housing under cover.

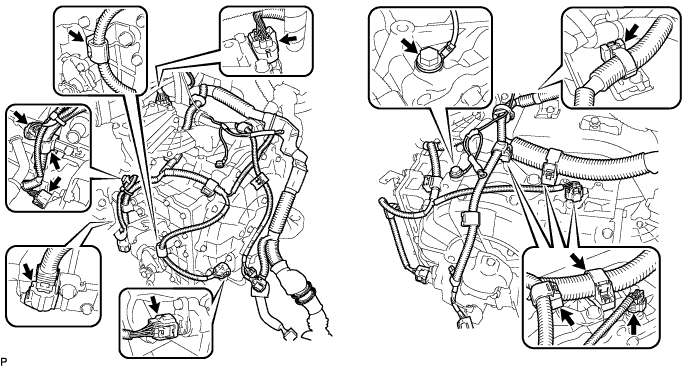

8. SEPARATE ENGINE WIRE

  1. Remove the bolt and ground wire.

  1. Disconnect the wire harnesses from the clamps.

  1. Disconnect the connectors.

    C105749

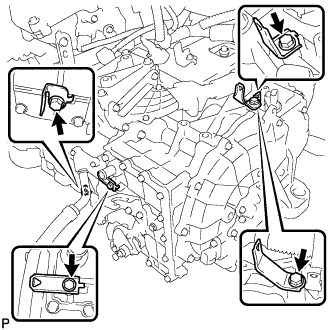

  1. C116181
    Remove the 4 bolts and 4 clamps.


9. REMOVE AUTOMATIC TRANSMISSION CASE COVER

  1. C105751
    Remove the bolt and clamp.

  1. Remove the bolt, clip and case cover from the hybrid transaxle.


10. REMOVE ENGINE MOUNTING BRACKET FRONT

  1. C105752
    Remove the 3 bolts and engine mounting bracket.


11. REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY

  1. C105753
    Remove the 8 bolts.

  1. Separate and remove the hybrid vehicle transaxle.

    NOTICE:
    Do not pry out the connection between the transaxle assembly and engine more than necessary to prevent the knock pin from being damaged.


12. REMOVE INPUT SHAFT OIL SEAL

  1. C105799E04
    Using a screwdriver with the tip taped, remove the oil seal.
