TESTING

1. Disconnect the negative battery cable.
2. Check to be sure the radiator fan rotates when spun by hand.
3. For 1990–94 vehicles proceed as follows:
   1. Connect 1 end of a jumper wire to terminal 4 of the coolant fan motor connector. Connect the other end of the jumper wire to the negative battery terminal.
   2. Connect 1 end of another jumper wire to terminal 2 of the coolant fan motor connector. Momentarily connect the other end of the jumper wire to the positive battery terminal.

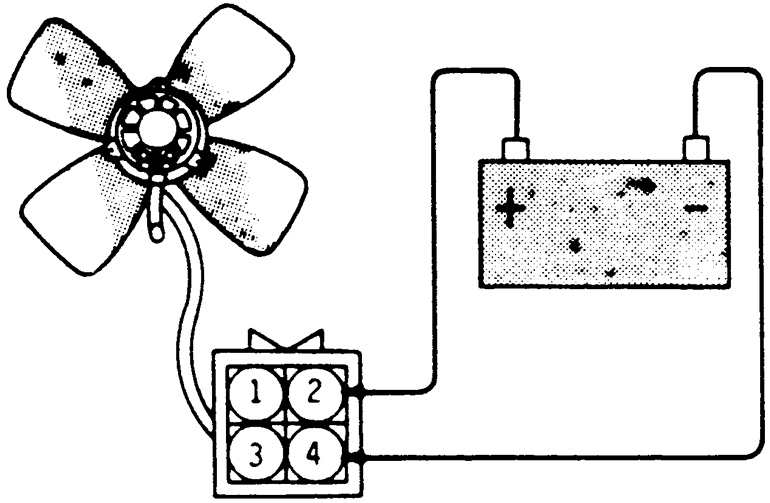

      Fig. 1: Engine cooling fan testing connections — 1990–94 vehicles

4. To test the cooling fan for 1995–98 vehicles, attach the jumper wire as shown in the accompanying figures.

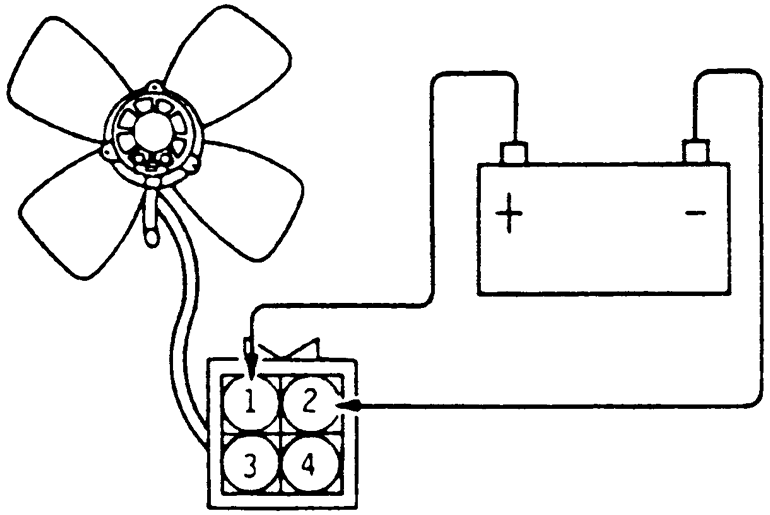

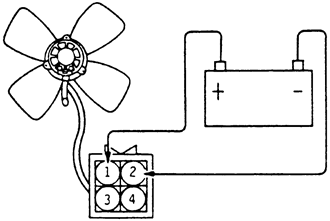

   Fig. 2: Testing the engine cooling fan — 1995–98 2.0L non-turbo engines

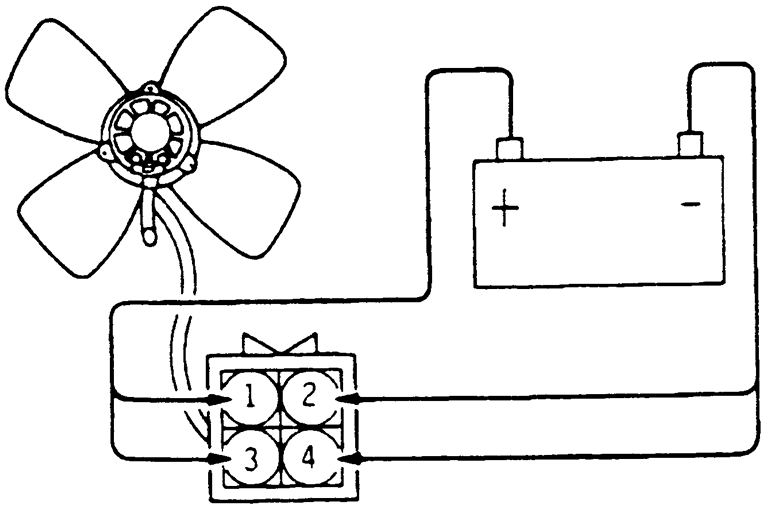

   Fig. 3: Test connections for the engine cooling fan — 1995–98 2.0L turbo and 2.4L engines

5. The fan motor should run. Listen for abnormal noise while the motor is turning. If present, replace the coolant fan motor.
