Convertible Top

MOTOR REPLACEMENT

1. Disconnect the negative battery cable.
2. Remove the lower quarter trim panel.
3. Remove the rear speaker brackets.
4. Remove the spacers.

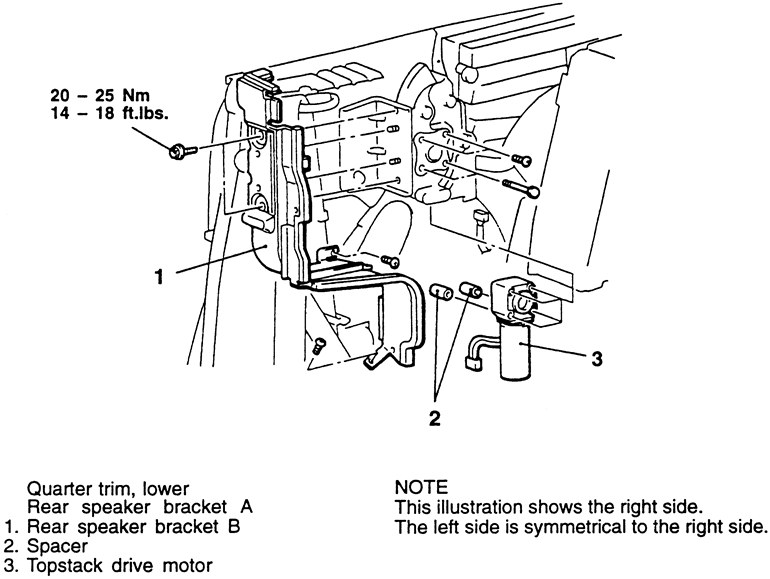

   Fig. 1: Convertible top motor (topstack drive motor) location and mounting

5. Unfasten the retaining bolts, removing the lower bolts with the spacers first, then remove the upper bolts.
6. Detach the motor electrical connector, then remove the topstack drive motor.
7. Installation is the reverse of the removal procedure.
