Turbocharger

REMOVAL & INSTALLATION

2.0L DOHC Engine (1990–93 Galant Only)

Many turbocharger failures are due to oil supply problems. Heat soak after hot shutdown can cause the engine oil in the turbocharger and oil lines to "coke." Often the oil feed lines will become partially or completely blocked with hardened particles of carbon, blocking oil flow. Check the oil feed pipe and oil return line for clogging. Clean these tubes well. Always use new gaskets above and below the oil feed eyebolt fitting. Do not allow particles of dirt or old gasket material to enter the oil passage hole and that no portion of the new gasket blocks the passage.

1. Disconnect the negative battery cable.
2. Drain the engine oil, cooling system and remove the radiator. On vehicles equipped with A/C, remove the condenser fan assembly with the radiator.

   CAUTION
   The EPA warns that prolonged contact with used engine oil may cause a number of skin disorders, including cancer! You should make every effort to minimize your exposure to used engine oil. Protective gloves should be worn when changing the oil. Wash your hands and any other exposed skin areas as soon as possible after exposure to used engine oil. Soap and water, or waterless hand cleaner should be used.

   CAUTION
   Never open, service or drain the radiator or cooling system when hot; serious burns can occur from the steam and hot coolant. Also, when draining engine coolant, keep in mind that cats and dogs are attracted to ethylene glycol antifreeze and could drink any that is left in an uncovered container or in puddles on the ground. This will prove fatal in sufficient quantities. Always drain coolant into a sealable container. Coolant should be reused unless it is contaminated or is several years old.

3. Detach the oxygen sensor connector and remove the sensor.
4. Remove the oil dipstick and tube.

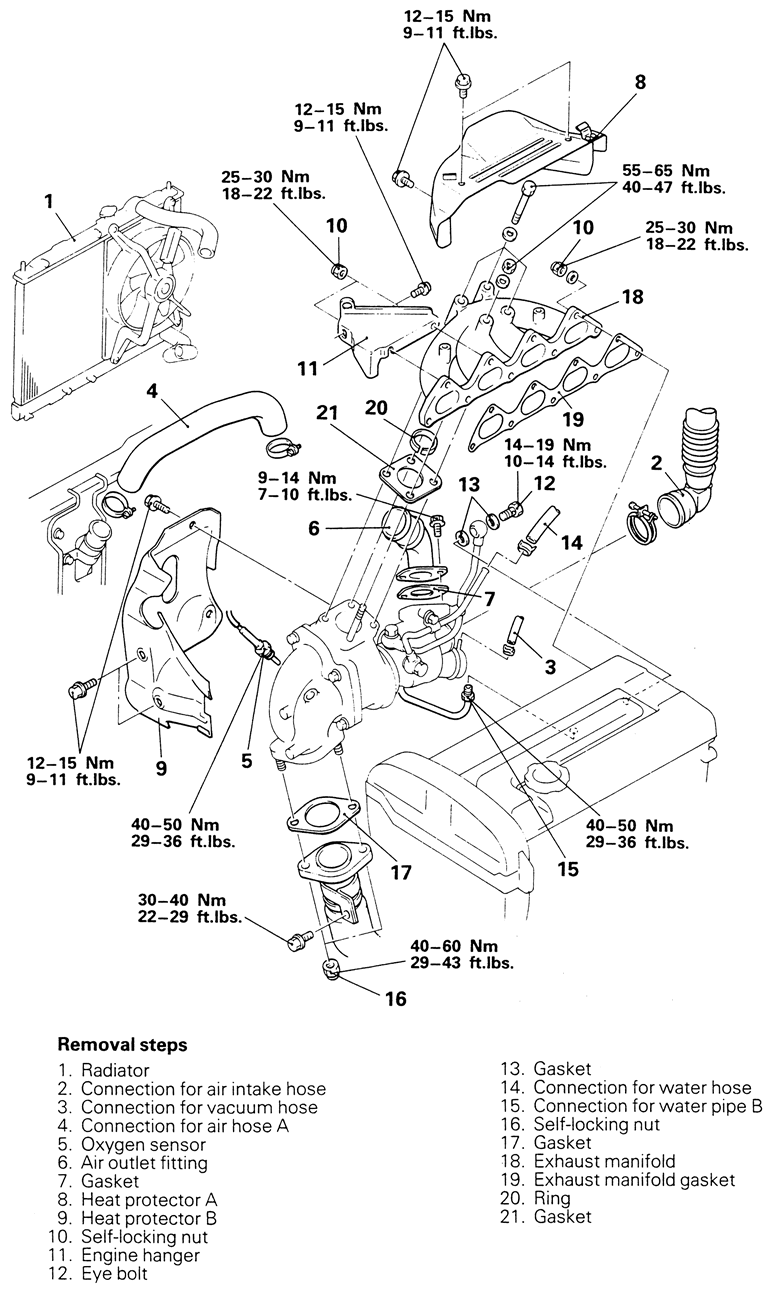

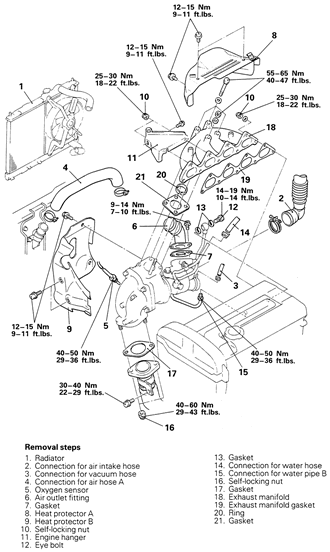

5. Remove the air intake bellows hose, the wastegate vacuum hose, the connections for the air outlet hose, and the upper and lower heat shield.
6. Unbolt the power steering pump and bracket assembly and leaving the hoses connected, wire it aside.

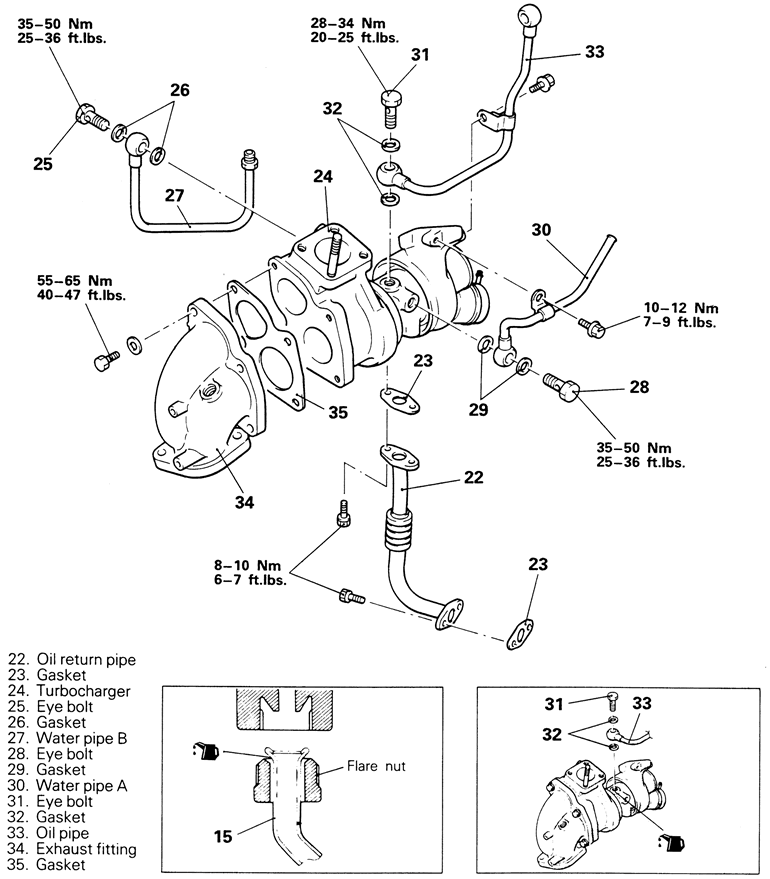

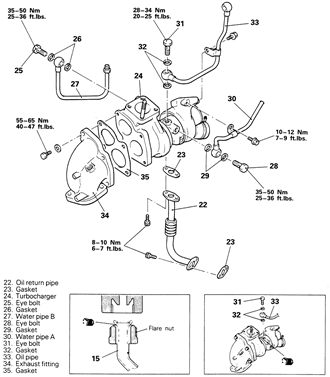

7. Remove the self-locking exhaust manifold nuts, the triangular engine hanger bracket, the eyebolt and gaskets that connect the oil feed line to the turbo center section and the water cooling lines. The water line under the turbo has a threaded connection.
8. Remove the exhaust pipe nuts and gasket and lift off the exhaust manifold. Discard the gasket.
9. Remove the 2 through bolts and 2 nuts that hold the exhaust manifold to the turbocharger.
10. Remove the 2 capscrews from the oil return line (under the turbo). Discard the gasket. Separate the turbo from the exhaust manifold. The 2 water pipes and oil feed line can still be attached.
11. Visually check the turbine wheel (hot side) and compressor wheel (cold side) for cracking or other damage. Check whether the turbine wheel and the compressor wheel can be easily turned by hand. Check for oil leakage. Check whether or not the wastegate valve remains open. If any problem is found, replace the part. Inspect oil passages for restriction or deposits and clean as required.
12. The wastegate can be checked with a pressure tester. Apply approximately 9 psi to the actuator and make sure the rod moves. Do not apply more than 10.3 psi or the diaphragm in the wastegate may be damaged. Vacuum applied to the wastegate actuator should be maintained, replace if leaks vacuum. Do not attempt to adjust the wastegate valve.

    To install:

13. Prime the oil return line with clean engine oil. Replace all locking nuts. Before installing the threaded connection for the water inlet pipe, apply light oil to the inner surface of the pipe flange. Assemble the turbocharger and exhaust manifold.
14. Install the exhaust manifold using a new gasket.
15. Connect the water cooling lines, oil feed line and engine hanger.
16. If removed, install the power steering pump and bracket.
17. Install the heat shields, air outlet hose, wastegate hose and air intake bellows.
18. Install the oil dipstick tube and dipstick. Install the oxygen sensor.
19. Install the radiator assembly.
20. Fill the engine with oil, fill the cooling system and reconnect the negative battery cable.

    WARNING
    Operating the engine without the proper amount and type of engine oil will result in severe engine damage.
