Rear Crankshaft Oil Seal

Removal & Installation

To Remove:

1. Remove the adaptor plate.

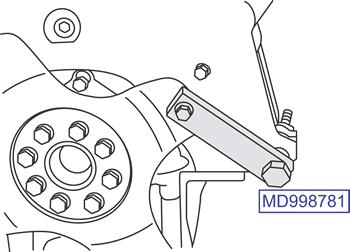

2. Use a special tool (MD998781) to secure the Drive Plate and remove the bolt.

3. Remove the rear plate.
4. Remove the oil seal case.
5. To remove the oil seal, cut out a portion in the crankshaft oil seal lip then cover the tip of a screwdriver with cloth and use it on the cutout in the oil seal to pry off the oil seal.

CAUTION
Be careful not to damage the crankshaft and oil seal case.

To Install:

1. Use a special tool (MD998718) to press-fit a new crankshaft rear oil seal into the oil seal case.
2. Install the oil seal case.
3. Install the rear plate.
4. Use a special tool (MD998781) to secure the Drive Plate and tighten the bolts.

5. Install the adaptor plate.
