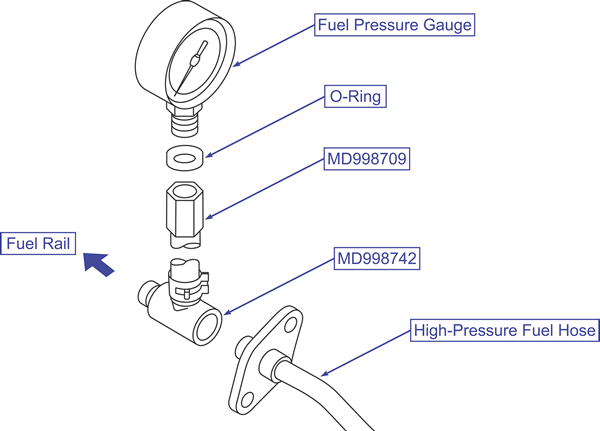

Fuel System Pressure Test

2.4L Engine

NOTE: Fuel pressure specification is approximate.
Regulated fuel system pressure; 38 psi (270 kPa) with vacuum hose connected.
Pressure with vacuum hose disconnected and plugged; 48 psi (340 kPa).

3.0L Engine

NOTE: Fuel pressure specification is approximate.
Regulated fuel system pressure; 38 psi (270 kPa) with vacuum hose connected.
Pressure with vacuum hose disconnected and plugged; 48 psi (340 kPa).
