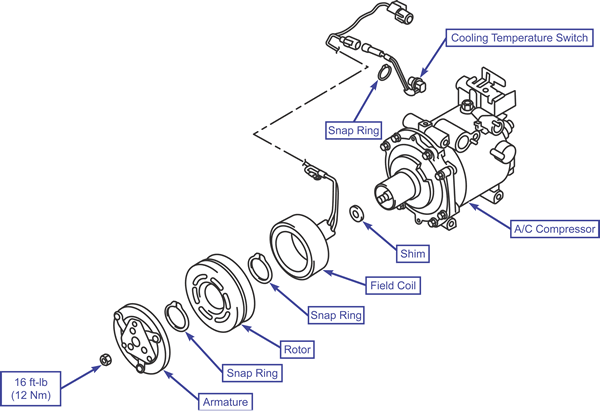

| Typical A/C compressor clutch removal/installation
|
NOTE: Make sure to install the snap ring in the direction shown.

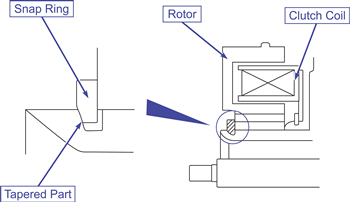

| A/C compressor clutch snap ring installation
|
NOTE: The clutch air gap should be 0.012 - 0.020 in (0.3 - 0.5 mm). Add or subtract shims to achieve this air gap.
