Camshaft Position Sensor

Removal & Installation

2.0L Engine

NOTE: Remove the air cleaner for access to the camshaft position sensor.

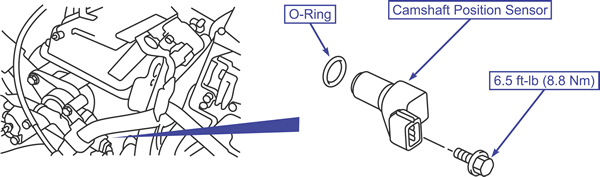

Camshaft position sensor removal/installation (2.0L)

2.0L Turbo Engine

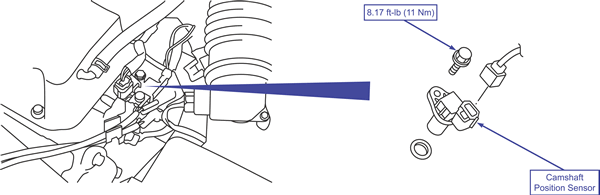

Camshaft position sensor removal/installation (2.0L)

2.4L Engine

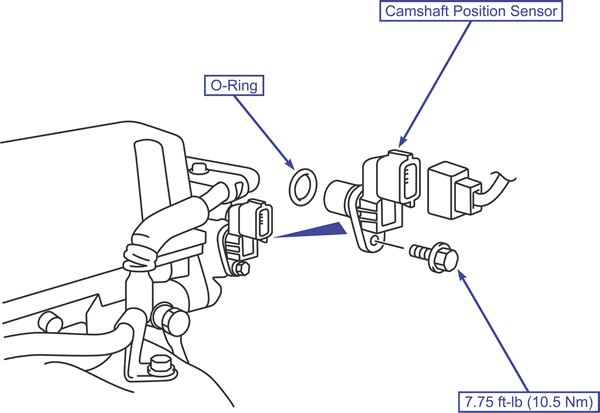

Camshaft position sensor removal/installation (2.4L)
