Crankshaft Position Sensor

Removal & Installation

2.0L Engine

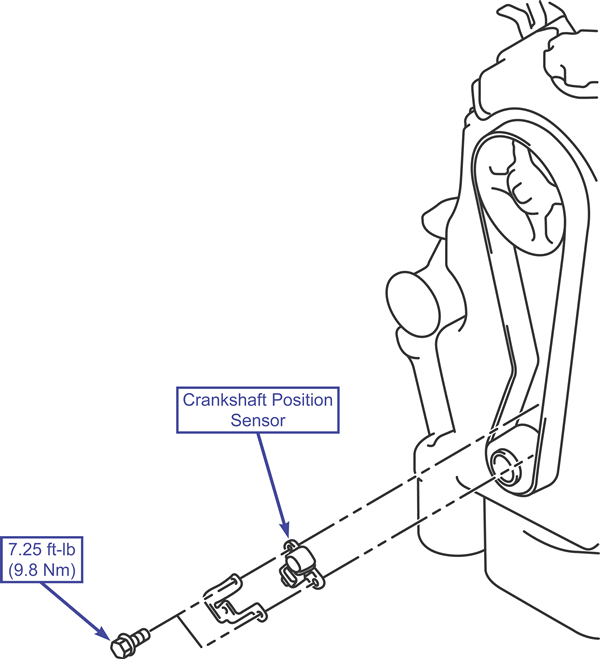

To Remove:

1. Remove the timing belt cover.
2. Remove the bracket.
3. Remove the crankshaft position sensor.

To Install:

1. Install the crankshaft position sensor.
2. Install the bracket.
3. Install the timing belt cover.

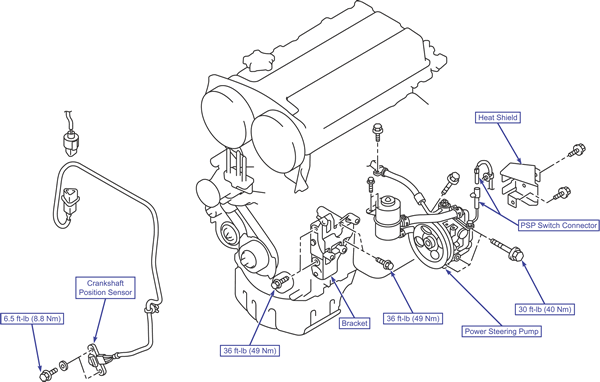

2.0L Turbo Engine

To Remove:

1. Remove the timing belt.
2. Remove the coolant reservoir.
3. Remove the power steering pump with the hoses attached and secure the pump out of the way.
4. Remove the power steering pump bracket.
5. Remove the crankshaft position sensor.

To Install:

1. Install the crankshaft position sensor.
2. Install the power steering pump bracket.
3. Install the power steering pump.
4. Install the coolant reservoir.
5. Install the timing belt.

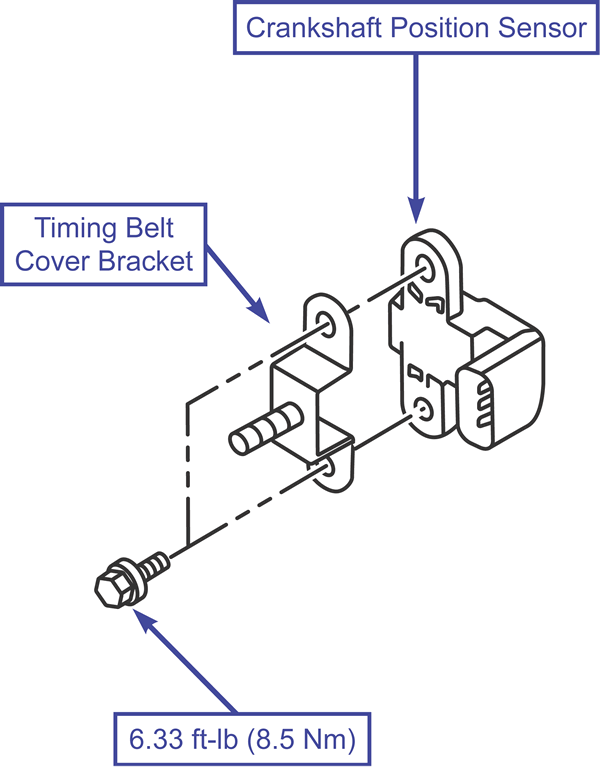

2.4L Engine

To Remove:

1. Remove the timing belt cover.
2. Remove the bracket.
3. Remove the crankshaft position sensor.

To Install:

1. Install the crankshaft position sensor.
2. Install the bracket.
3. Install the timing belt cover.
