Speakers

REMOVAL & INSTALLATION

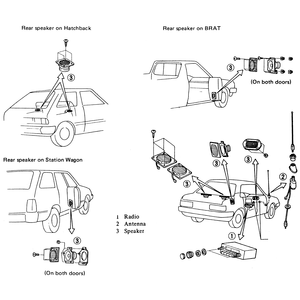

Fig. 1: Common speaker locations

Front Speakers
  1. Disconnect the negative battery cable.
  2. Remove the speaker cover retaining screws.
  3. Remove the cover from the speaker and remove the attaching fasteners.
  4. Remove the speaker and disengage the electrical connector.
  5. Installation is the reverse of removal.
Rear Speakers
  1. Disconnect the negative battery cable.
  2. Remove the speaker cover retaining screws.
  3. Remove the cover from the speaker and remove the attaching fasteners.
  4. Disengage the electrical connector.
  5. Installation is the reverse of removal.
