WINDSHIELD WIPERS

Wipers Blades and Arms

REMOVAL & INSTALLATION

1. To replace the complete wiper blade, lift up on the locking lever and slide the blade off of the wiper arm.

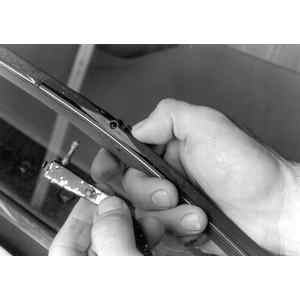

   Fig. 1: Press down on the spring to remove the wiper blade

2. The wiper arms are held on by a cap nut. If the cap nut is covered by a boot, slide the boot back and away from the wiper arm base.

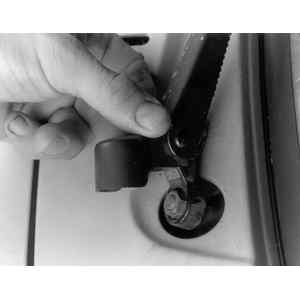

   Fig. 2: Pull the boot back to uncover the cap nut

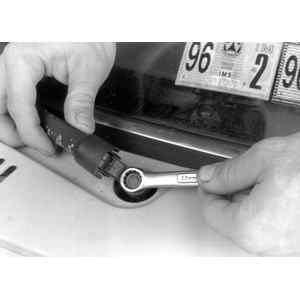

   Fig. 3: Loosen the cap nut while applying upward pressure

3. Loosen the nut and apply upward pressure to remove the wiper arm.
4. Place the new wiper arm in position and reverse the above procedure.
