REMOVAL & INSTALLATION

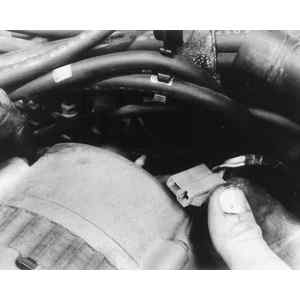

Fig. 1: Unfasten the power wire and indicator light wire from the back of the alternator — 1.8L engine shown

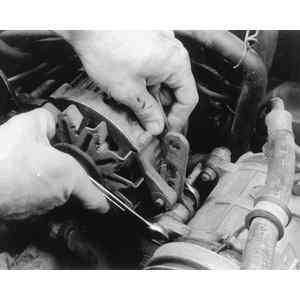

Fig. 2: Remove the adjusting bolt and bracket, as well as the lower retaining nut and bolt

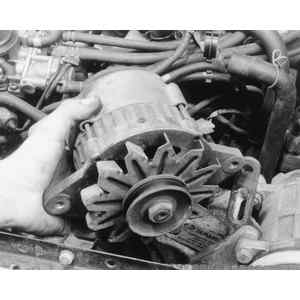

Fig. 3: Lift the alternator out of the engine compartment

  1. Disconnect the negative battery cable.
  2. Label and disconnect the alternator electrical wiring harness and battery cable.
  3. Loosen the belt tension bracket adjusting bolt at the top of the alternator. Loosen the lower retaining bolt at the base of the alternator. Push the alternator in and remove the accessory drive belt.
  4. Remove the alternator adjusting bolt followed by the lower retaining bolt.
  5. Remove the alternator from the engine compartment.

    NOTE: Now is a good time to inspect the drive belt for wear, replace if necessary.

  6. Install the remaining components in the reverse order of removal. Tighten all components securely.
