REMOVAL & INSTALLATION

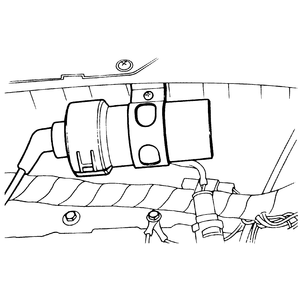

Fig. 1: Ignition coil attached to the firewall

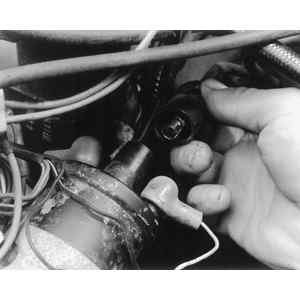

Fig. 2: Remove the high tension wire from the coil — 1.8L engine shown

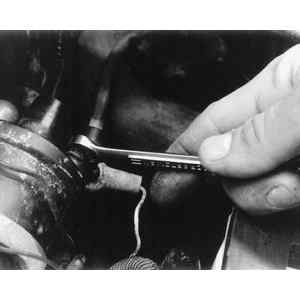

Fig. 3: Remove the wires attached to the coil. Some are secured with nuts, while others slip on

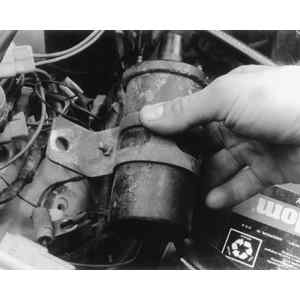

Fig. 4: Remove the bracket retaining bolts and lift the coil assembly out of the engine

NOTE: The ignition coil is located on the firewall.

  1. Disconnect the negative battery cable.
  2. Remove the ignition coil cover, if equipped.
  3. Disconnect the high tension wire from the coil.
  4. Tag, then remove the lead wires attached to the coil.
  5. Remove the coil by either loosening the nut and bolt on the coil bracket, and sliding the coil out, or removing the retaining screws securing the coil and bracket to the firewall.
  6. Installation is the reverse of removal. Tighten the remainder of the components to specifications.
