Oil Pump

Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Battery ground cable
   • Under Cover

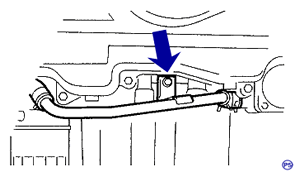

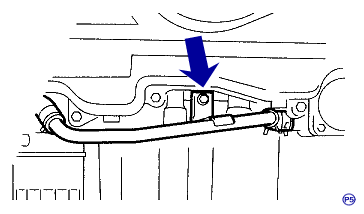

     Water Pipe

   • Water pipe to oil pump bolts (turbo models)
   • Water pipe and hoses between oil cooler and water pump (turbo models)
   • Radiator

     Crank Position Sensor

   • Crankshaft position sensor
   • V-Belts

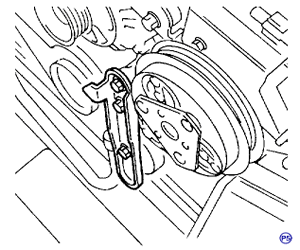

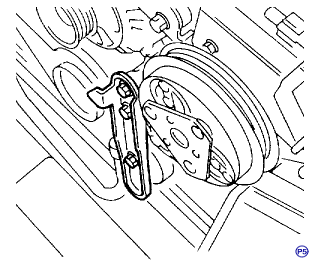

     Rear Belt Tensioner

   • Rear side V-belt tensioner

     Crank Pulley

   • Crankshaft pulley
   • Water pump

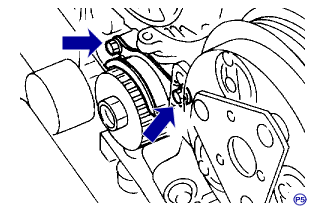

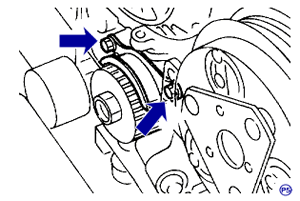

     Timing Belt Guide

   • Timing belt guide (M/T models)
   • Crankshaft sprocket

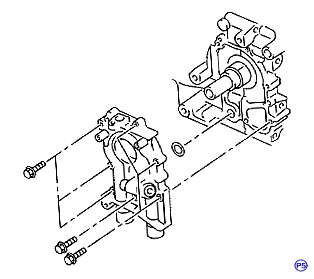

     Oil Pump

   • Oil pump to cylinder block bolts
   • Oil pump using the flat tip screwdriver

CAUTION
Be careful not to scratch the mating surfaces of cylinder block and oil pump.

To Install:

Note: Apply fluid packing to the matching surfaces of oil pump. Fluid packing: THREE BOND 1215 (Part No. 004403007) or equivalent. Replace the O-ring (1) with a new one. Apply a coat of engine oil to the inside of oil seal. Be careful not to scratch the oil seal when installing the oil pump on cylinder block. Position the oil pump, aligning the notched area with crankshaft, and push the oil pump straight.

CAUTION
Make sure the oil seal lip is not folded.

1. Install or connect the following:

   Oil Pump

   • Oil pump
   • Oil pump to cylinder block bolts
     1. Torque to: 4.7 ft. lbs. (6.4 Nm)
   • Crankshaft sprocket

     Timing Belt Guide

   • Timing belt guide (M/T models)
   • Water pump

     Crank Pulley

   • Crankshaft pulley

     Rear Belt Tensioner

   • Rear side V-belt tensioner
   • Radiator

     Crank Position Sensor

   • Crankshaft position sensor
   • V-Belts

     Water Pipe

   • Water pipe and hoses between oil cooler and water pump (turbo models)
   • Water pipe to oil pump bolts (turbo models)
   • Under Cover
   • Ground cable to battery
