Rocker Arm (Valve) Cover

Removal & Installation

Right Side

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:

   Negative Battery Cable

   • Ground cable from battery

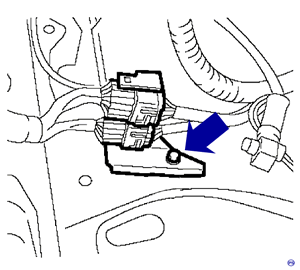

     Engine Harness Connector

     Engine Harness Bracket

   • Engine harness connector with bracket from air cleaner upper cover
   • Air intake duct
   • Air cleaner case
   • Ignition coil connector
   • Ignition coil
   • PCV hose from rocker cover
   • Rocker cover mounting bolts
   • Rocker cover

To Install:

1. Install or connect the following:
   • Rocker cover
   • Rocker cover mounting bolts
   • PCV hose to rocker cover
   • Ignition coil
   • Ignition coil connector
   • Air cleaner case
   • Air intake duct

     Engine Harness Connector

     Engine Harness Bracket

   • Engine harness connector with bracket to air cleaner upper cover

     Negative Battery Cable

   • Ground cable to battery

Left Side

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:

   Negative Battery Cable

   • Battery cable
   • Battery and battery carrier

     Washer Motor Connector

   • Washer motor connectors

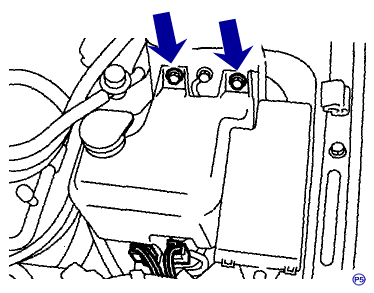

     Washer Bottle Bolts

   • Washer tank mounting bolts
   • Washer tank (set aside)
   • Ignition coil connector
   • Ignition coil
   • PCV hose from rocker cover
   • Rocker cover bolts
   • Rocker cover

To Install:

1. Install or connect the following:
   • Rocker cover
   • Rocker cover bolts
   • PCV hose to rocker cover
   • Ignition coil connector
   • Ignition coil

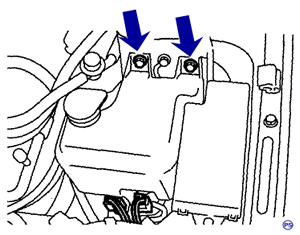

     Washer Bottle Bolts

   • Washer tank mounting bolts
   • Washer tank

     Washer Motor Connector

   • Washer motor connectors
   • Battery and battery carrier

     Negative Battery Cable

   • Battery cable
