Water Pump

Removal & Installation

To Remove:

1. Remove or disconnect the following
   • Radiator
   • V-belts
   • Timing belt

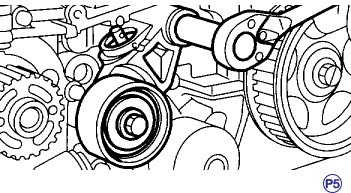

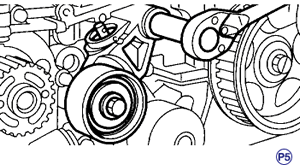

   • Automatic belt tension adjuster (1)
   • Belt idler (2) (turbo models)
   • Belt idler No. 2 (3)
   • Camshaft position sensor (turbo models)
   • Camshaft sprockets (LH)

     Camshaft Sprocket Cover

   • Belt cover No. 2 (LH)

     Left Tensioner Bracket

   • Tensioner bracket
   • Water pump hose

     Water Pump

   • Water pump

To Install:

1. Install or connect the following:

   Water Pump

   • Water pump onto cylinder block (LH)
     1. First Stage - Torque to: 106 inch lbs. (12 Nm)
     2. Second Stage - Torque to: 106 inch lbs. (12 Nm)

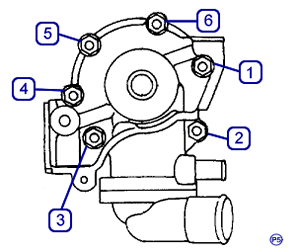

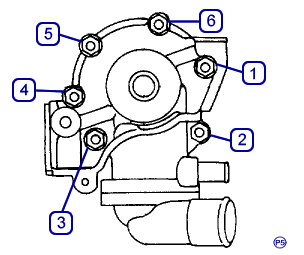

     Tightening Order

     Note: Replace the gasket with a new one. When installing the water pump, tighten bolts in two stages in alphabetical sequence as shown in the figure.

   • Hose to water pump

     Left Tensioner Bracket

   • Tensioner bracket
     1. Torque to: 18 ft. lbs. (25 Nm)

     Camshaft Sprocket Cover

   • Belt cover no. 2 (LH)
     1. Torque to: 44 inch lbs. (5 Nm)
   • Camshaft sprockets
     1. Torque to: 57.9 ft. lbs. (78 Nm)
   • Belt idler No. 2 (turbo models)
     1. Torque to: 29 ft. lbs. (39 Nm)
   • Camshaft position sensor (turbo models)

   • Belt idler
   • Automatic belt tension adjuster which has tension rod held by pin
   • Timing belt
   • V-belts
   • Radiator
2. Check and or fill coolant
