Rear Exhaust Pipe

Removal & Installation

To Remove:

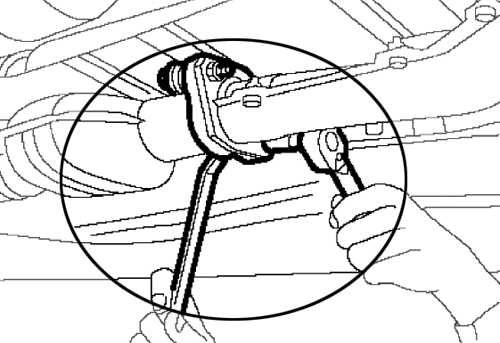

1. Separate the rear exhaust pipe from center exhaust pipe

   CAUTION
   Be careful, the exhaust pipe is hot.

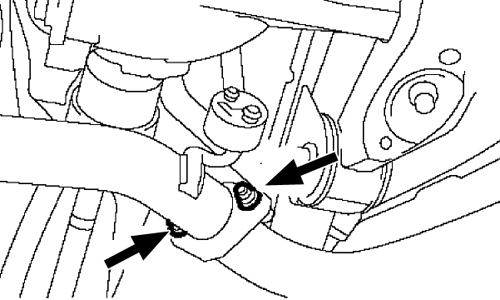

2. Separate the rear exhaust pipe from muffler
3. Remove the rear exhaust pipe

To Install:

NOTE: Replace the gaskets with new ones.

1. Install the rear exhaust pipe to muffler

2. Install the rear exhaust pipe to center exhaust pipe
