Headlight Switch

Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery

   • Instrument panel lower cover
   • Upper column cover to lower column cover screws

   • Combination switch connector

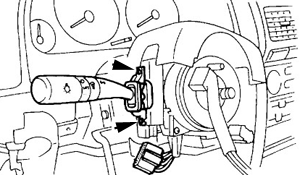

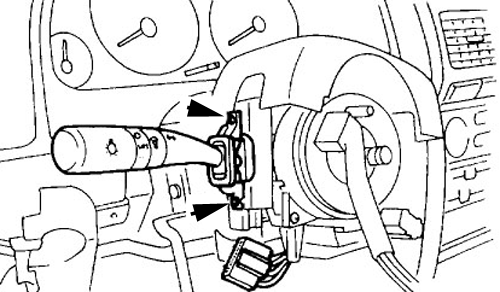

   • Switch screws

To Install:

1. Install or connect the following
   • Switch
   • Switch screws
   • Combination switch connector
   • Upper column cover to lower column cover screws

   • Instrument panel lower cover
   • Ground cable to battery
