To Remove:
- Disconnect or remove the following
- Ground cable from battery

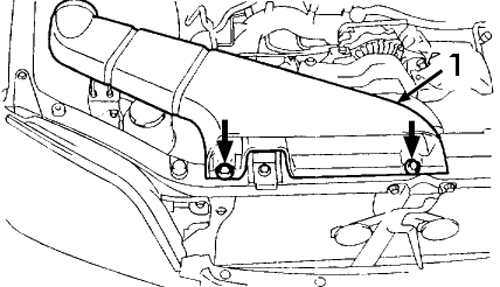

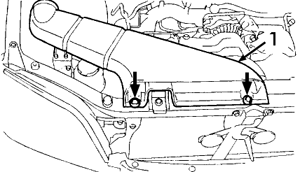

- Duct (a) (when right side headlight is removed)

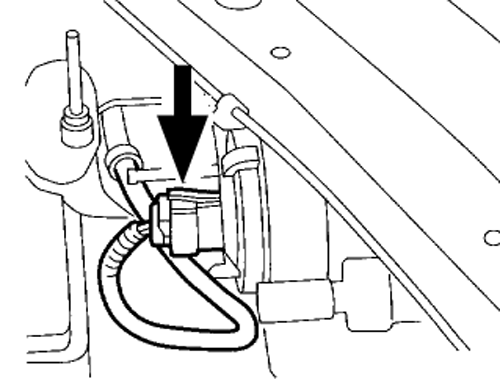

- Headlight bulb connector

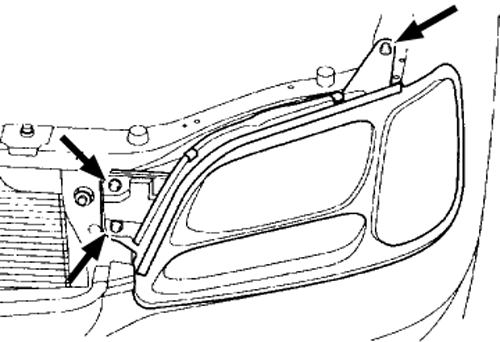

- Three mounting bolts
- Headlight assembly
To Install:
- Connect or install the following
- Headlight assembly
- Three mounting bolts
- Headlight bulb connector
- Duct (a) (when right side headlight is removed)
- Ground cable to battery
