To Remove:
- Set tilt steering at the lowest position
- Disconnect or remove the following
- Ground cable from battery

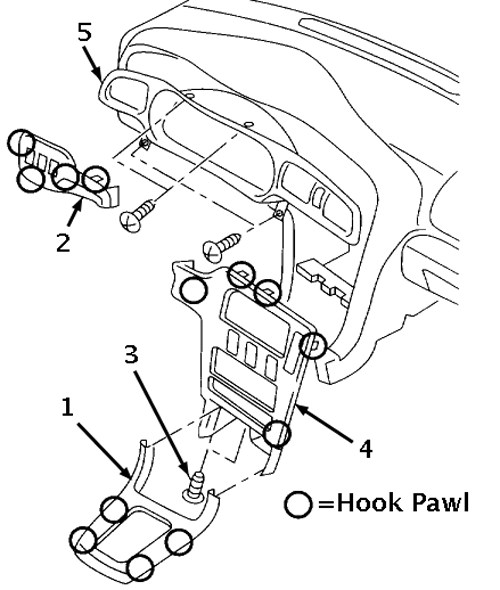

- Electrical connectors to remove front cover (a) and switch panel (b)
- Screws (c) to remove center panel (d)
- Meter visor (e)

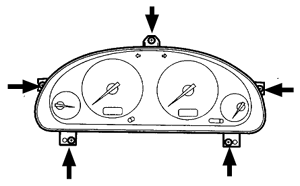

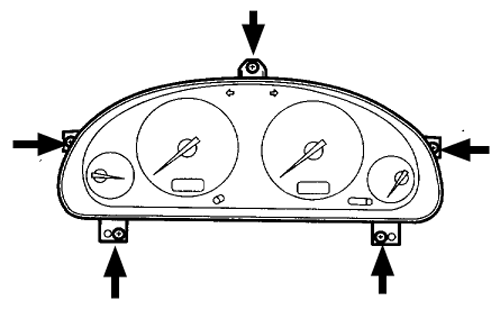

- Screws of combination meter to pull out the meter toward you
- Connector in the upper area of combination meter to remove meter
To Install:
- Install or connect the following
- Connector in the upper area of combination meter
- Combination meter
- Combination meter screws
- Meter visor (e)
- Center panel (d) screws (c)
- Electrical connectors to install front cover (a) and switch panel (b)
- Ground cable to battery
CAUTION
Make sure that electrical connector is connected securely
Make sure that each meter operates normally
