Windshield Washer Pump

Removal & Installation

Front

To Remove:

1. Open hood
2. Remove the following

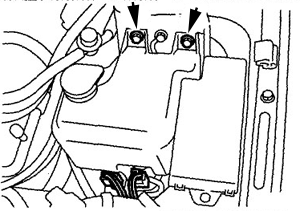

   • Washer bottle tank bolts
   • Hose and connector
   • Washer tank
   • Washer pump

To Install:

1. Install the following
   • Washer pump
   • Washer tank
   • Hose and connector
   • Washer bottle tank bolts
2. Close hood

Rear

To Remove:

1. Open hood
2. Remove the following
   • Washer bottle tank bolts
   • Hose and connector
   • Washer tank
   • Washer pump

To Install:

1. Install the following
   • Washer pump
   • Washer tank
   • Hose and connector
   • Washer bottle tank bolts
2. Close hood
