Adjustment

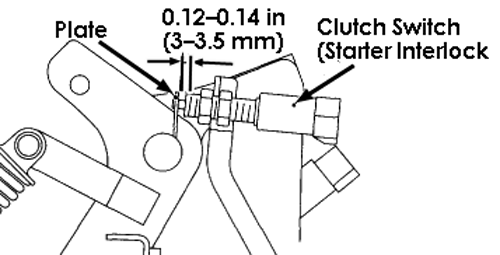

Clutch switch to pedal plate gap
Loosen the clutch switch mounting lock nut and fully depress the clutch pedal
Adjust the clutch switch to pedal plate gap
Gap specification
: 3 - 3.5 mm (0.12 - 0.14 inch)
Tighten the lock nut
Torque specification:
8 Nm (13.0 ft. lbs.)
